Contact Resistance of Circuit Breaker
  • Contact Resistance of Circuit BreakerContact Resistance of Circuit Breaker
  • Contact Resistance of Circuit BreakerContact Resistance of Circuit Breaker
  • Contact Resistance of Circuit BreakerContact Resistance of Circuit Breaker
  • Contact Resistance of Circuit BreakerContact Resistance of Circuit Breaker
  • Contact Resistance of Circuit BreakerContact Resistance of Circuit Breaker

Contact Resistance of Circuit Breaker

Weshine® invented Contact Resistance of Circuit Breaker for circuit breaker test are advanced standalone or PC-controlled instruments for circuit breaker maintenance. Typical application areas of Weshine®'s Contact Resistance of Circuit Breaker for circuit breaker test are medium and high voltage substations at electric power generation, transmission, and factories of switchgear. Also, industrial environments and electric power distribution are suitable application areas for Weshine® Contact Resistance of Circuit Breaker for circuit breaker test. Weshine® Contact Resistance of Circuit Breaker for circuit breaker test with high quality and accuracy, invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Contact Resistance of Circuit Breaker for circuit breaker test from Weshine!

Send Inquiry

Product Description

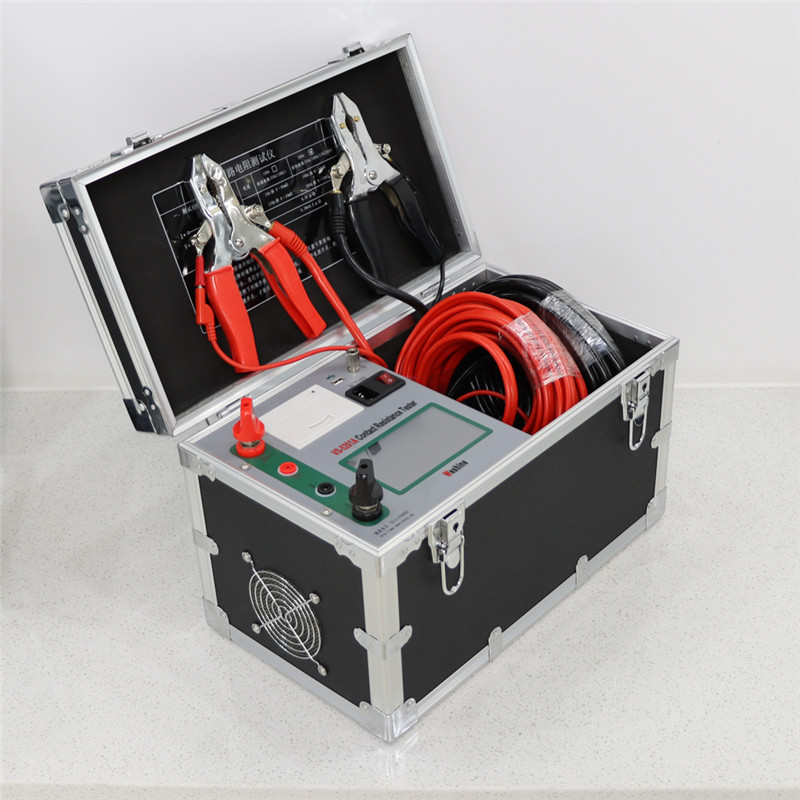

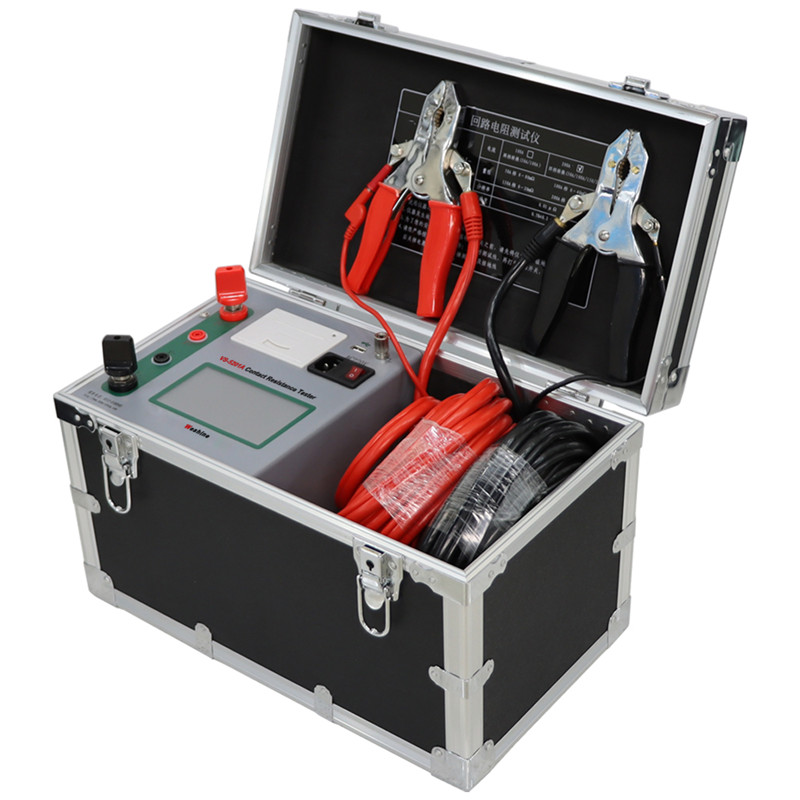

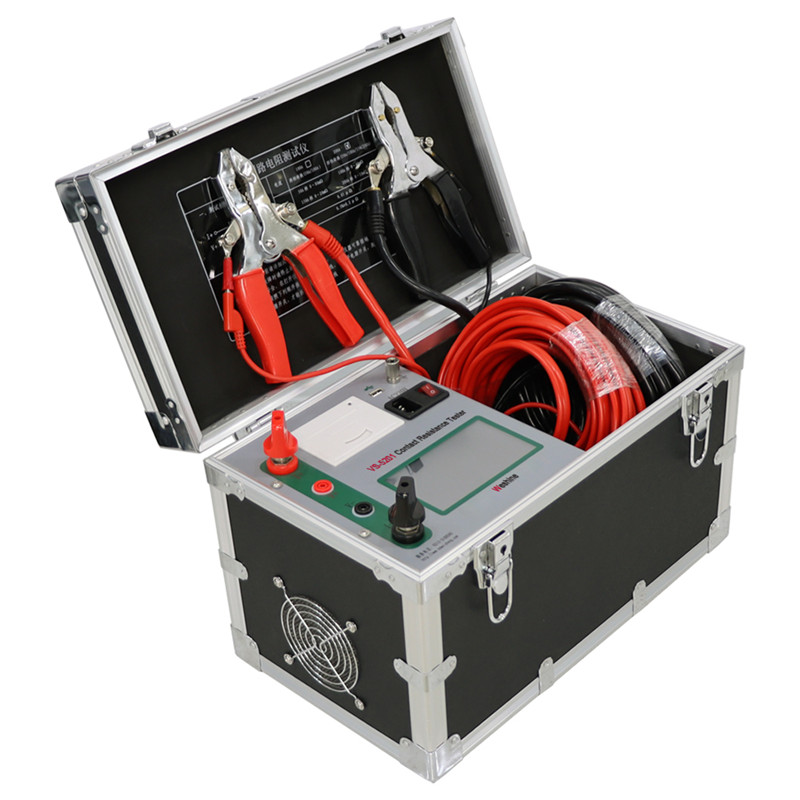

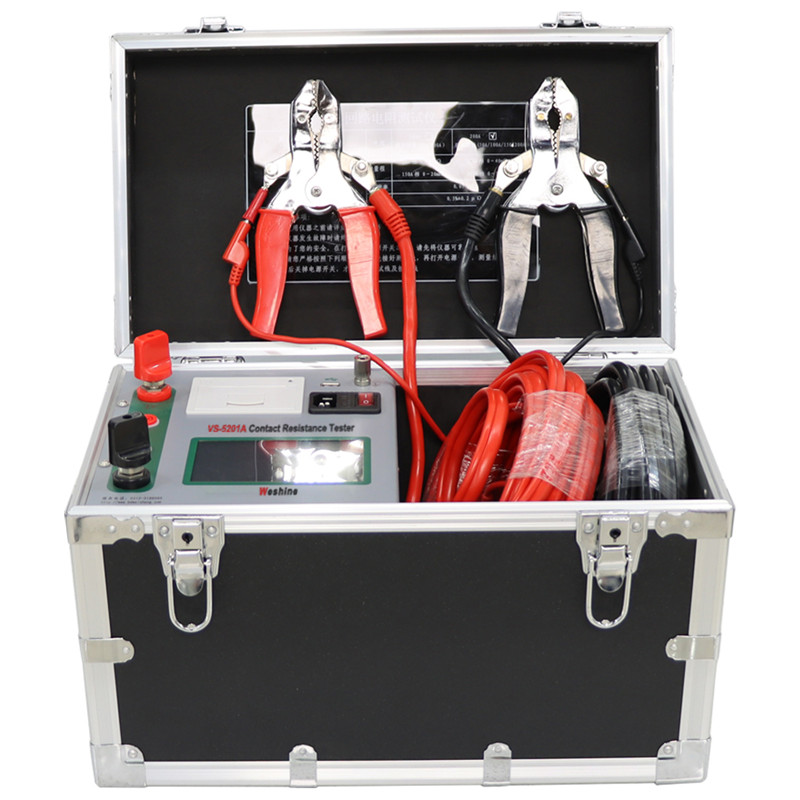

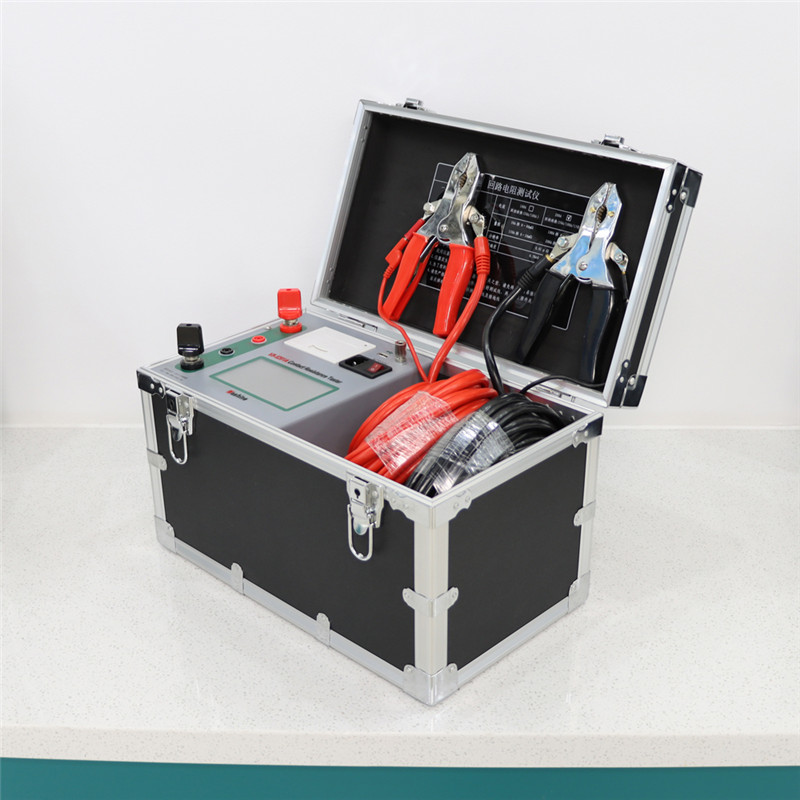

Contact Resistance of Circuit Breaker for circuit breaker test


Product Introduction:

When a high current passes through a pair of mechanically independent metallic contacts, the resistance must be as low as possible. An increase in resistance can lead to additional degradation, as I2R losses will cause local heating of the contact surfaces. Weshine® invented range of Contact Resistance of Circuit Breaker for circuit breaker test measure both steady state and dynamic low resistance values. With test currents up to 600 A available, logging and trending are also available on some models. Weshine® ensure that Contact Resistance of Circuit Breaker for circuit breaker test are portable, making them suitable for field measurements. Weshine® Contact Resistance of Circuit Breakers’ portability makes them ideal for a vast range of resistance testing across the entire LV, MV HV and EHV spectrum.

Weshine® 5201 Series is designed to test the Contact Resistance of Circuit Breaker of circuit breaker contacts, bus-bar joints, contact elements in bus-bars and other high-current links. The testers have been designed with safety, ease of use and versatility in mind.

Weshine® Contact Resistance of Circuit Breaker for circuit breaker test can be used anywhere to measure a low resistance value with high accuracy. It conducts true DC ripple free current testing of bus bars, circuit breakers, fuses, etc.


PRODUCT INFORMATION

Product Name

Contact Resistance of Circuit Breaker for circuit breaker test

Model Number

VS-5201

Current Output

50 A, 100 A;

Test Range

0 to 80 mΩ

Certificates

CE; EMC; LVD; ISO; IEC;

MEASUREMENT

OBJECTS

* circuit breakers

* disconnecting switches

* busbar connections

* knife-contact fuses

* safety devices

……

Dimensions

360 x 235 x 270 mm

Weight

8 kg



Quality Certificates

We always believe that all the success of our company is directly related to the quality of the products we provide. Contact Resistance of Circuit Breaker for circuit breaker test meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
