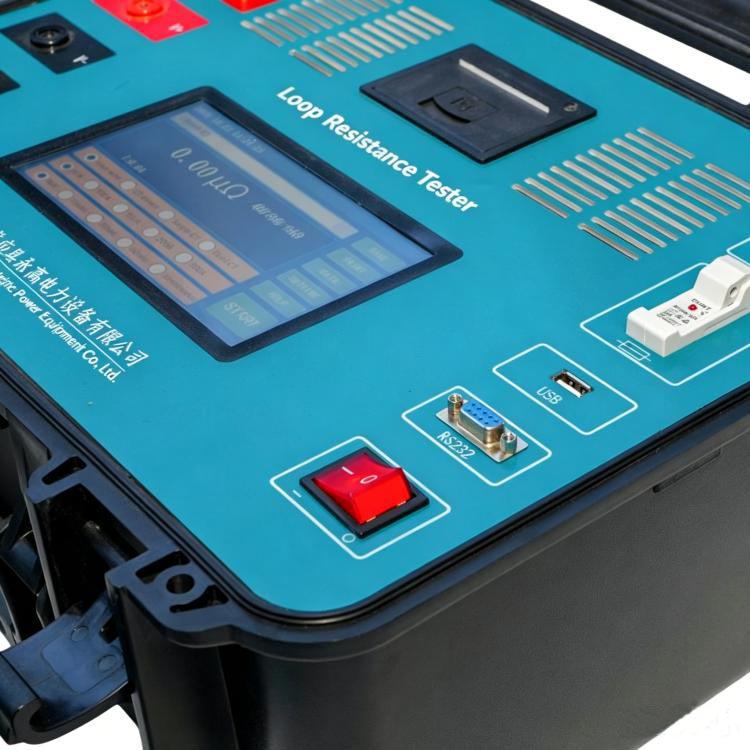

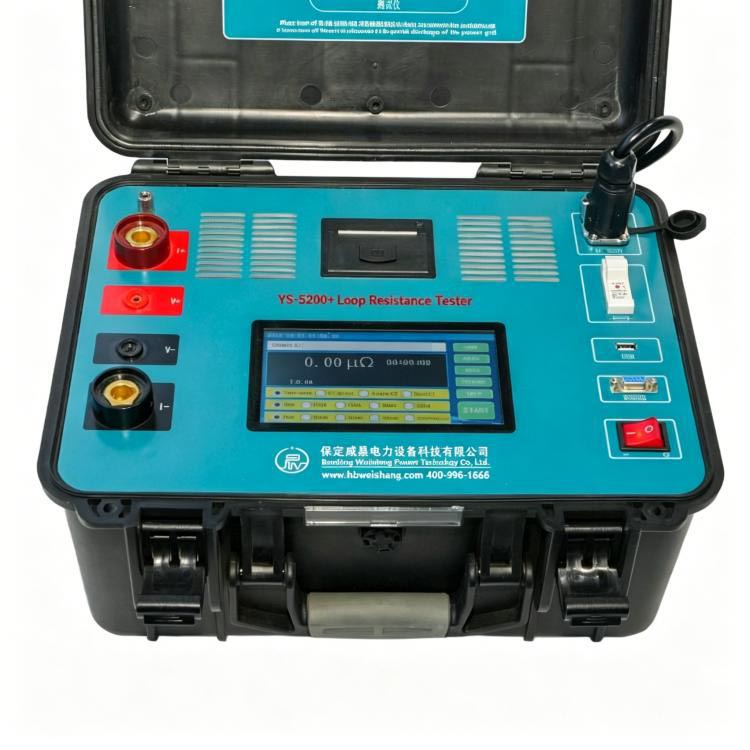

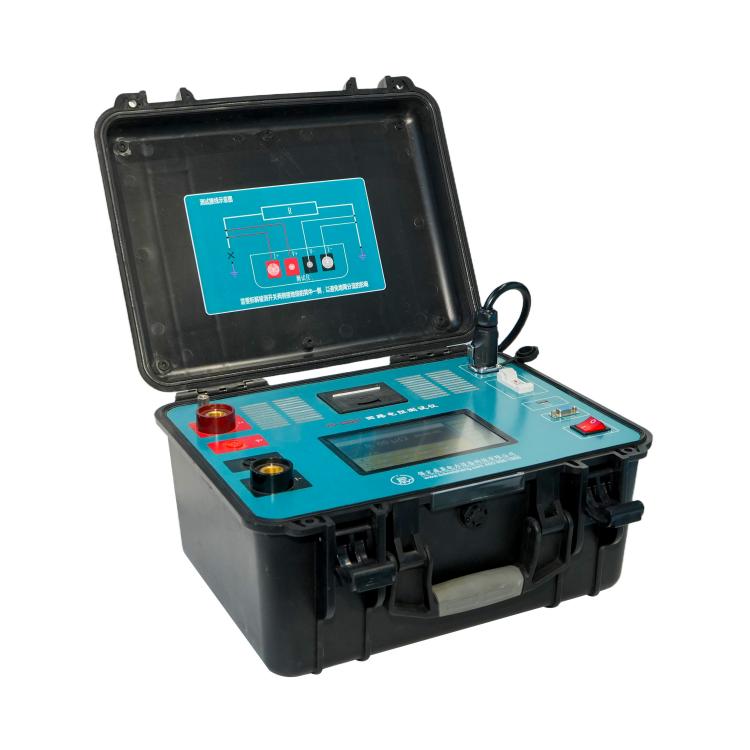

Desktop 300A Intelligent Circuit Resistance Tester

The durable Desktop 300A Intelligent Circuit Resistance Tester offered by Weshine, a professional manufacturer and supplier in China, delivers precise micro-ohm readings on circuit breakers, disconnectors, earthing switches and busbar joints, even when currents run through single loops or multiple parallel branches..

We built this unit following DL/T845.4-2019 and IEC four-wire testing standards, fully matching industry demands for high-current resistance detection.

Inside the machine sits a high-power constant current source paired with multi-channel current sensing hardware. This structure keeps output current steady and voltage sampling accurate, even when working alongside complicated parallel grounding grids, which is a key reason engineering contractors place repeat bulk orders for this model.

Core Measurement Principles

The Desktop 300A Intelligent Circuit Resistance Tester relies on two core functional modules:

1.Adjustable high constant current output: 50A–300A

2.Wireless DC clamp sensor: 0~±600A current capture

It calculates actual contact resistance based on Ohm’s Law: R = V / I₀

V = voltage drop detected on contact points

I₀ = real current passing through the tested branch

Intelligent Testing Modes (Core Innovation)

weshine electric integrates four advanced testing modes to support different field conditions:

1. Traditional Circuit Resistance Mode

Users need to disconnect one side of the earthing network to bypass shunt current interference. The tester feeds up to 300A DC current and reads voltage drop data. This mode achieves the highest precision and works well for planned maintenance sites.

2. Clamp Direct Measurement Mode

No need to take apart grounding connections. The wireless clamp tracks real-time branch current I₀, then the machine computes resistance automatically with R=V/I₀. Highlights: No disassembly work, faster field testing, safer for live-area maintenance.

3. Single-Side Shunt Mode

Suitable for parallel grounding layouts like cabinet earthing and distributed ground grids. The clamp measures shunt branch current I₂, and the device works out effective test current with I₀=I₁−I₂ before calculating resistance. It fixes accuracy errors caused by partial parallel currents.

4. Dual-Side Shunt Mode

For large grounding grids with bidirectional split currents in substations. Two clamps collect I21 and I22 branch currents, the system calculates I₀=I₁−I21−I22 to get true resistance data for multi-branch networks.

Safety and Clamp System Design

The matched wireless clamps can identify DC current direction automatically.

Key clamp specifications:

1、DC test range: 0 to ±600A

2、Must align with correct current direction for accurate data

3、Built-in calibration function to offset measurement deviation

Operation safety reminders:

1、Do not operate the clamp beyond its measuring range to avoid hardware damage

2、Install clamps following current direction marks to stabilize readings

3、Run calibration regularly to reduce data errors

Step-by-Step Operation Guide

This desktop tester follows standard field testing workflows for high-current scenarios.

Step 1: System Preparation

Confirm the equipment is fully powered off, grounding setup is complete, and clamp batteries are fully charged. Bulk procurement clients can receive full operation handbooks along with shipment.

Step 2: Wiring Configuration

I+ and I- connect to two ends of the test circuit; V+ and V- attach to inner voltage sampling points. Always place voltage probes inside the current loop to rule out wire resistance interference.

Step 3: Mode Selection

Pick one test mode: traditional disassembly mode, clamp direct mode, single shunt mode or dual shunt mode. Then set output current (50A–300A) and test duration (Fast / 10s / 30s / 60s / Continuous).

Step 4: Measurement Process

The machine runs current ramp-up, stability control, real-time current capture, voltage sampling, resistance calculation and temperature compensation automatically without manual adjustment.

Step 5: Result Display

Screen shows total current I₁, branch clamp currents (I₂ / I21 / I22), resistance value in micro-ohms, test time and stability status.

Step 6: Data Management

Operators can save test logs to local memory, export records via FAT32 USB drives, print reports with optional print modules, and look back on historical test data anytime.

Application Scenarios

This Desktop 300A Intelligent Circuit Resistance Tester handles resistance detection tasks under complex grounding and strong electromagnetic interference conditions, widely adopted by buyers from these sectors:

1、Large substations

2、Power generation plants

3、Industrial switchgear systems

4、High-voltage transmission facilities

5、Grounding grid networks

The system performs reliably under:

1、Strong electromagnetic interference

2、Parallel current distribution

3、、Limited disconnection access

4、Continuous maintenance operations

Typical Testing Uses

1、Contact resistance test for high-voltage circuit breakers

2、Fault inspection of substation grounding grids

3、Resistance detection of busbar connecting joints

4、Routine maintenance for GIS/AIS switch cabinets

5、Factory quality inspection for power plant electrical equipment

6、Ground system analysis for transmission networks

7、Troubleshooting of industrial power distribution systems

Weshine Advantages

We built the Desktop 300A Intelligent Circuit Resistance Tester with multi-mode measurement architecture to solve tricky parallel current and complex grounding problems in modern power systems. The wireless clamp non-disassembly testing cuts maintenance downtime and improves site safety greatly, which makes many electrical service suppliers sign long-term supply contracts with us.

Multi-channel real-time current calculation algorithms ensure accurate resistance values even in parallel grounding environments. The 300A large current output quickly breaks down oxide layers on aged contact surfaces, delivering more reliable test results for worn conductive joints. Built-in intelligent thermal control keeps the unit steady under long high-current working loads.

User-friendly industrial design advantages for purchasers:

1、Multi-mode intelligent operation

2、Visualized real-time current data display

3、Full set of automatic safety protection functions

4、Structured data storage and export

Contact our sales team right away to get customized quotations and complete technical parameter files for your project procurement.
