100A DC Handheld Contact Resistance Tester

As a professional Contact Resistance Test manufacturer in China, Weshine factory's 100A DC Handheld Contact Resistance Tester follows the official standard DL/T 845.4-2019, tailor-made to check contact resistance on high-voltage switch cabinets and other low-resistance conductive joints. It also works well for all high-current micro-resistance testing scenarios that demand stable and highly accurate readings.

Powered by a high-speed processing chip, the machine outputs a steady 100A DC current. Strong current output minimizes interference caused by oxidized contact surfaces or surface dirt, so operators can judge real contact quality reliably. Technicians can spot loose joints, degraded contacts and overheating risks early via resistance changes, stopping equipment breakdowns ahead of time.

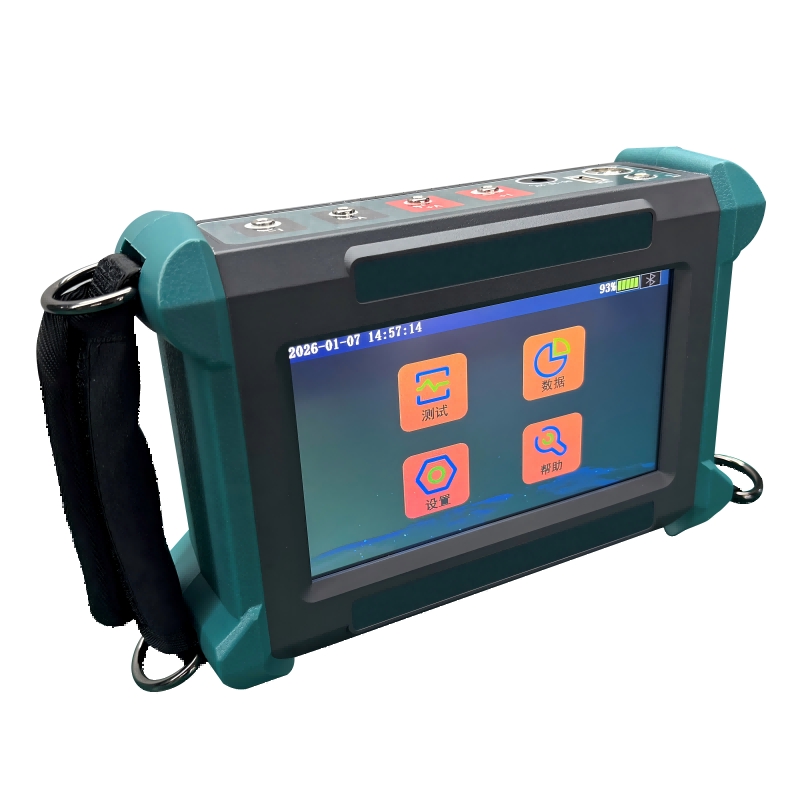

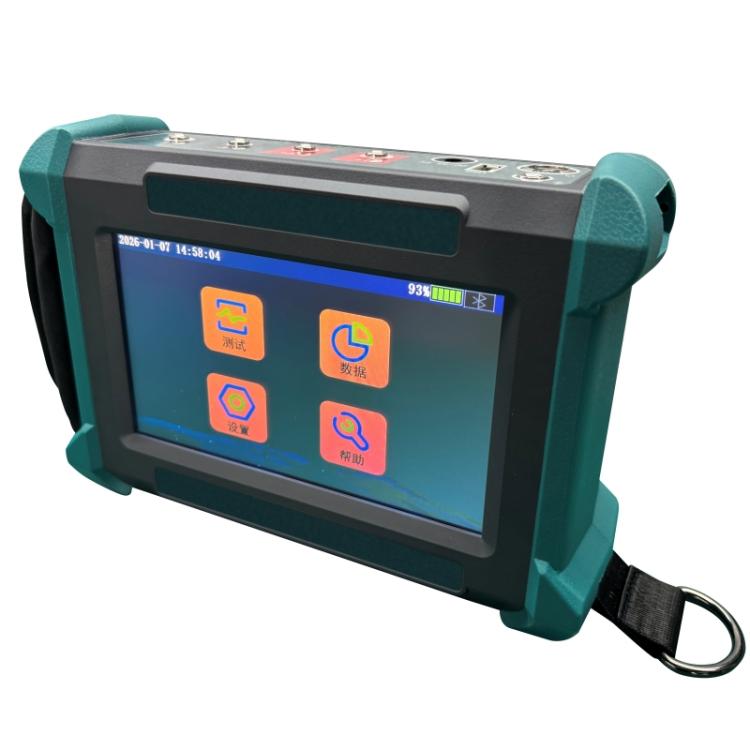

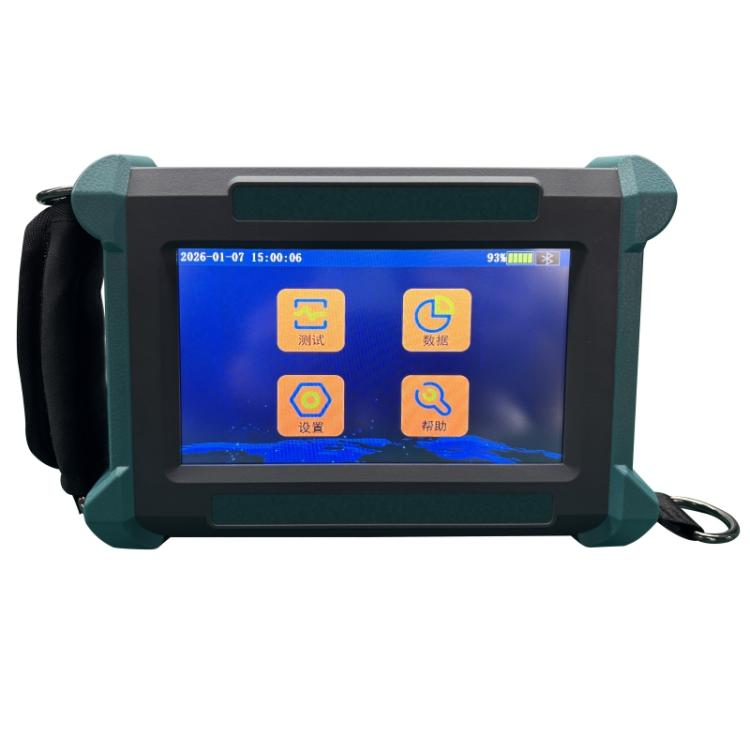

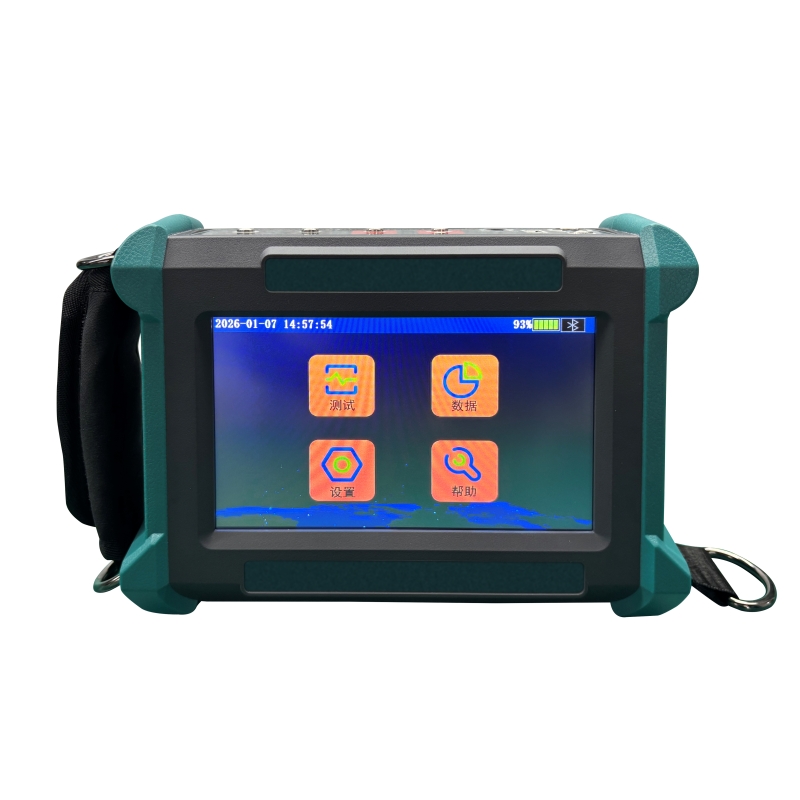

It comes with a bright 7-inch color touch screen with straightforward graphical controls, fully visible even under direct outdoor sunlight. Operators can adjust test current, test duration, system language and other settings directly on the touch panel without complicated operations.

To boost field work efficiency, the 100A DC Handheld Contact Resistance Tester carries a large-capacity built-in lithium battery. Field tests no longer require external AC power supplies. Users can also pick from multiple test durations to match different site testing demands.

The internal storage saves up to 512 groups of test data, and you can export all records to a USB flash drive to organize inspection reports conveniently. A built-in real-time clock stamps each test with accurate time data, and the voice broadcast function calls out test results right after measurement, bringing extra convenience for outdoor site work.

Compact, tough and simple to operate, the 100A DC Handheld Contact Resistance Tester fits all electrical equipment tasks: preventive maintenance, project commissioning, factory acceptance inspection and daily routine checks.

Features

1、Max 100A DC test current output

2、Lightweight handheld body for field carry

3、Ultra-precise micro-ohm level measurement

4、Compliant with DL/T 845.4-2019 industry standard

5、7-inch high-brightness color touch screen

6、Clear display under strong sunlight

7、Integrated rechargeable lithium battery pack

8、Switchable 50A / 100A test modes

9、Adjustable test timing options

10、Minimum resolution down to 0.01μΩ

11、High-speed digital measurement algorithm

12、Voice prompt for finished test data

13、Onboard real-time clock module

14、Local storage capacity for 512 test logs

15、USB drive data export support

16、Dual-language menu: Chinese & English

17、Automatic overcurrent safety protection

18、Short-circuit protection function

19、Battery overheat protection

20、Battery over-discharge prevention

21、Small size, low overall weight

Product Guide: Working Principle

The 100A DC Handheld Contact Resistance Tester adopts the four-wire Kelvin testing method. It injects stable 50A or 100A DC current to the test piece, then captures voltage drop at contact points to calculate resistance values with micro-ohm precision. This method rules out interference from wire resistance to guarantee accurate readings.

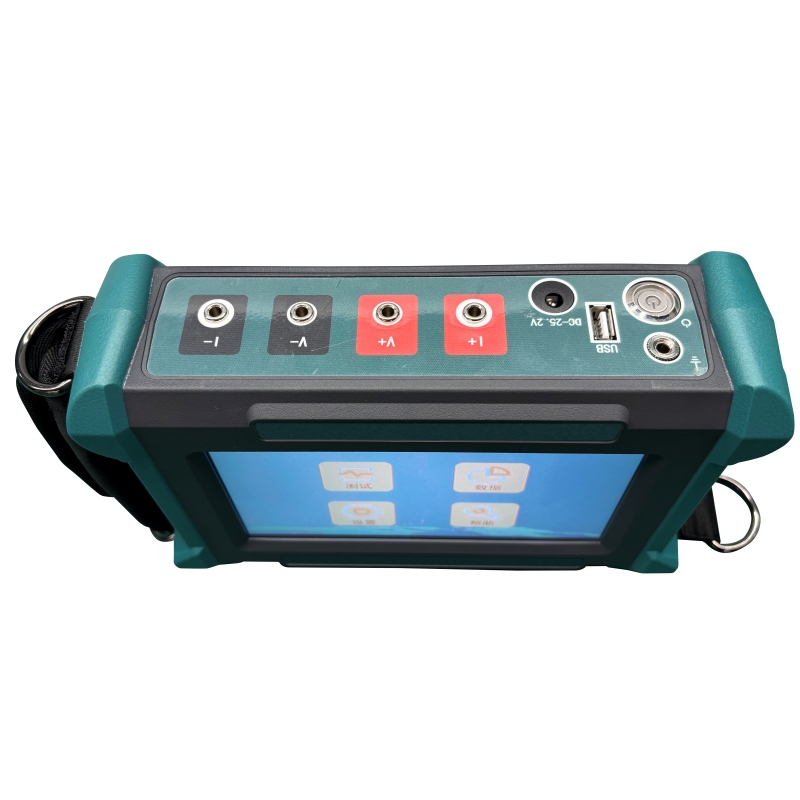

Operation steps are simple: Hook up current and voltage test leads, choose your target current and test time, then tap start. The screen will show resistance value, output current and test duration once testing finishes. Results will be voiced out automatically, and users can save data locally or export to USB storage.

Application Scenarios

Power Utilities

Routine maintenance of circuit breakers, disconnect switches, and busbar connections.

Substations

Preventive testing of high-voltage switching equipment and grounding connections.

Transformer Manufacturers

Factory quality control and contact resistance verification.

Industrial Power Systems

Inspection of electrical joints, conductors, and low-resistance connections.

Electrical Testing Service Providers

Field testing and commissioning of electrical equipment.

Applications

1、High-voltage circuit breaker contact resistance testing

2、GIS switchgear contact point diagnostics

3、Power plant electrical maintenance and inspection

4、Substation preventive maintenance programs

5、Electrical equipment manufacturing quality inspection

6、Transmission and distribution system troubleshooting

7、Grounding connection resistance verification

Weshine Advantages

Weshine Electric specializes in manufacturing testing instruments for power stations and industrial power systems. The 100A DC Handheld Contact Resistance Tester combines high-current output, ultra-precise micro-ohm testing, intuitive touch operation, USB data management and battery-powered portable design, delivering consistent, efficient contact resistance testing for field engineers and maintenance staff. Our testing tools help clients lift equipment stability, cut unplanned downtime and streamline long-term asset management plans.

Send us your technical demands to get customized quotations and fast delivery schedules.
