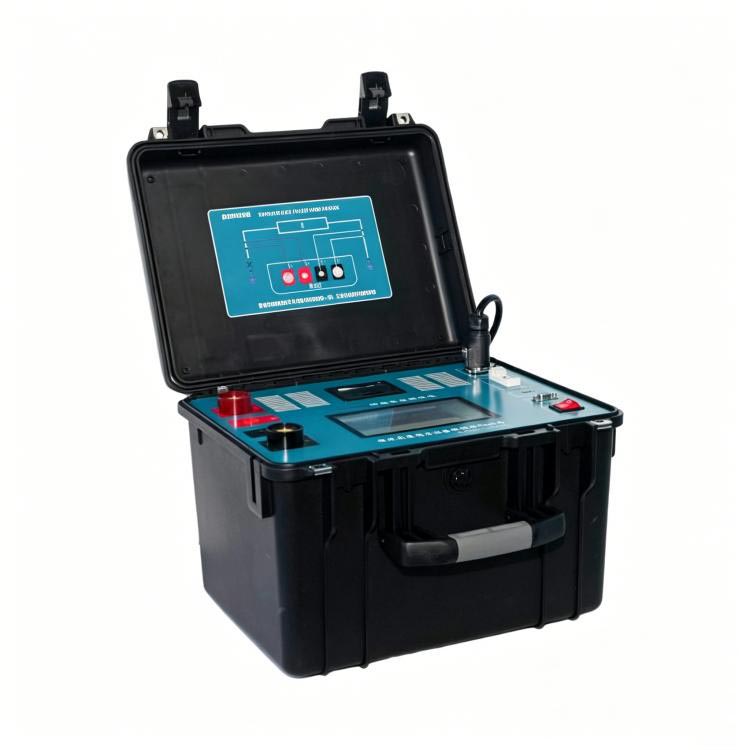

High Current Contact Resistance Tester With Color Touch Screen

As a professional manufacturer in China, Weshine would like to provide you quality High Current Contact Resistance Tester With Color Touch Screen, which is an upgraded intelligent resistance meter made for high-voltage device contact testing. Injecting large test current strips away interference from surface oxidation layers and unstable contact points, so testers get trustworthy readings for equipment pre-maintenance inspection and factory acceptance checks. Bulk purchasers can match this unit to their full electrical testing tool kits for one-stop procurement.

Users can pick adjustable output current from 50A up to 600A, matching test criteria and rated parameters of different electrical devices. The high-current test mode accurately judges contact condition on circuit breakers, GIS equipment, disconnecting switches, busbars and cable joints, a must-have tool for factory inspection teams and power engineering contractors.

This  High Current Contact Resistance Tester With Color Touch Screen adopts a 7-inch industrial color touch screen with easy-to-navigate operation panel. Staff can quickly set output current, test timing, system language and communication parameters on screen, view real-time test waveforms and manage stored data with minimal training. It cuts on-site operation time for engineering teams handling large batches of equipment inspection work.

Equipped with a large built-in rechargeable lithium battery, the unit supports fully portable outdoor testing without mains power access. After 500A or 600A heavy-current tests, it triggers a 10-second auto cooling cycle to shield internal power modules, extending service life and lowering long-term replacement costs for buyers with frequent field testing tasks.

It carries multiple data transmission modes: Bluetooth wireless link, RS232 wired connection, USB flash drive export and local storage. Operators can browse, save, export or delete test records directly on the machine, speeding up test report sorting and equipment asset management for power station tender projects and factory quality control departments.

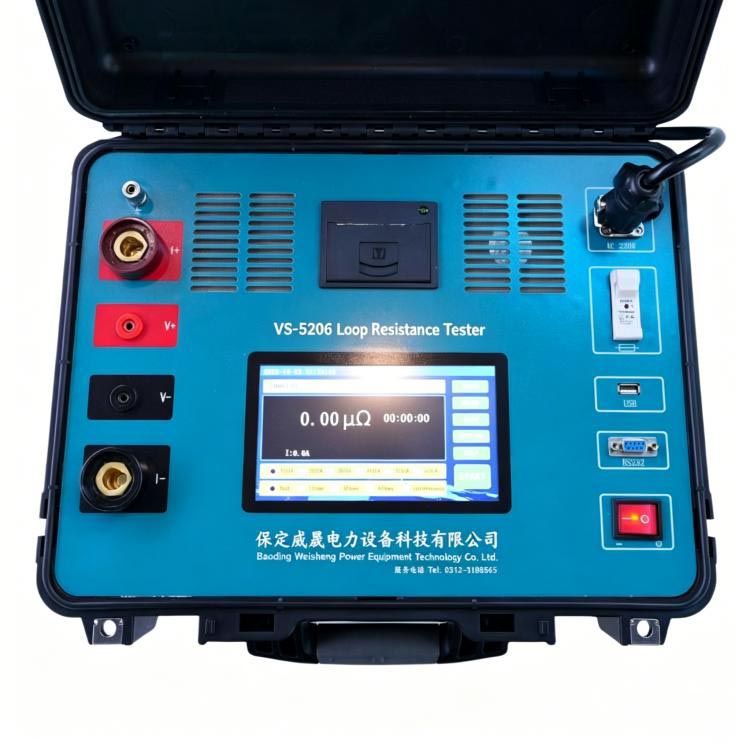

Built to withstand harsh outdoor job sites, the VS-5206 merges powerful high-current output, precise digital measurement, multi-layer safety protection and durable housing. It delivers consistent reliable test results for daily equipment maintenance, new project commissioning and electrical fault diagnosis, ideal for wholesale orders from electrical equipment distributors and power engineering firms.

Safety and Clamp System Design

weshine electric integrates wireless clamp sensors with DC current direction recognition technology.

Key clamp specifications:

1、DC measurement range: 0 to ±600A

2、Direction-sensitive installation (forward current orientation required)

3、Calibration support in system settings

Safety rules ensure stable operation:

1、Clamp overload beyond range may damage sensor

2、Correct directional installation improves accuracy

3、Calibration function compensates for deviation

Features

Maximum 600A DC test current

High-precision contact resistance measurement

Designed for circuit breakers and GIS equipment

Multiple selectable output currents

Four-wire Kelvin measurement technology

7-inch color touchscreen display

Built-in rechargeable lithium battery

Intelligent automatic measurement

Automatic cooling after 500A/600A testing

Bluetooth communication

RS232 communication interface

USB flash drive data export

Internal test record storage

Chinese and English language support

Adjustable communication parameters

Intelligent data management

High measurement stability

Compact portable design

Suitable for field and laboratory testing

Multiple protection functions for safe operation

Product Guide

How the  High Current Contact Resistance Tester With Color Touch Screen Works

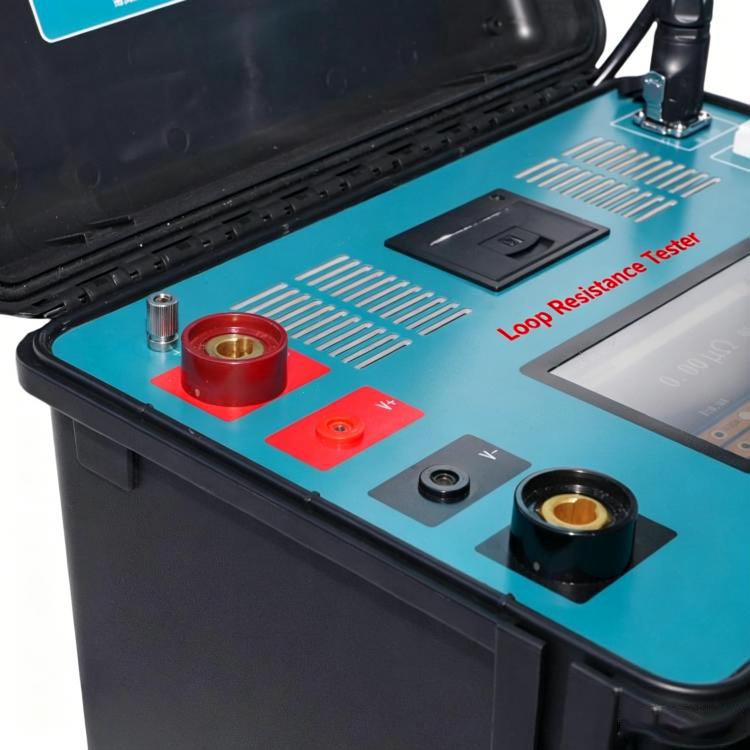

This tester injects a stable high DC current into the test object through dedicated current leads while simultaneously measuring the voltage drop across the contact using separate sensing leads. Utilizing the four-terminal Kelvin measurement principle, the instrument eliminates lead resistance and calculates highly accurate contact resistance values.

After the selected current stabilizes, the tester automatically performs measurement and stops output upon completion. When operating at 500A or 600A, the instrument automatically activates a cooling cycle before the next measurement to maintain system reliability.

Application Scenarios

Power Utilities

Routine maintenance of circuit breakers, disconnect switches, GIS equipment, and substations.

Transformer Manufacturers

Factory acceptance testing and electrical connection verification.

Electrical Contractors

Commissioning and maintenance of medium- and high-voltage installations.

Industrial Facilities

Inspection of high-current electrical joints and busbar systems.

Testing Laboratories

Precision low-resistance measurement and equipment certification.

Applications

1、Circuit Breaker Contact Resistance Testing

2、Loop Resistance Measurement

3、GIS Switchgear Testing

4、Disconnect Switch Testing

5、Busbar Joint Resistance Testing

6、Grounding Connection Measurement

7、High-Current Electrical Connection Inspection

8、Factory Acceptance Testing (FAT)

9、Preventive Maintenance

10、Power System Commissioning

Weshine Advantages

Weshine Electric specializes in high-voltage electrical testing equipment and intelligent diagnostic instruments. The  High Current Contact Resistance Tester With Color Touch Screen combines high-current output, precision Kelvin measurement technology, intelligent touchscreen operation, advanced communication interfaces, and comprehensive data management capabilities. Designed for utilities, manufacturers, and maintenance professionals, Weshine solutions deliver reliable contact resistance testing that improves equipment reliability, minimizes downtime, and supports long-term asset management.
