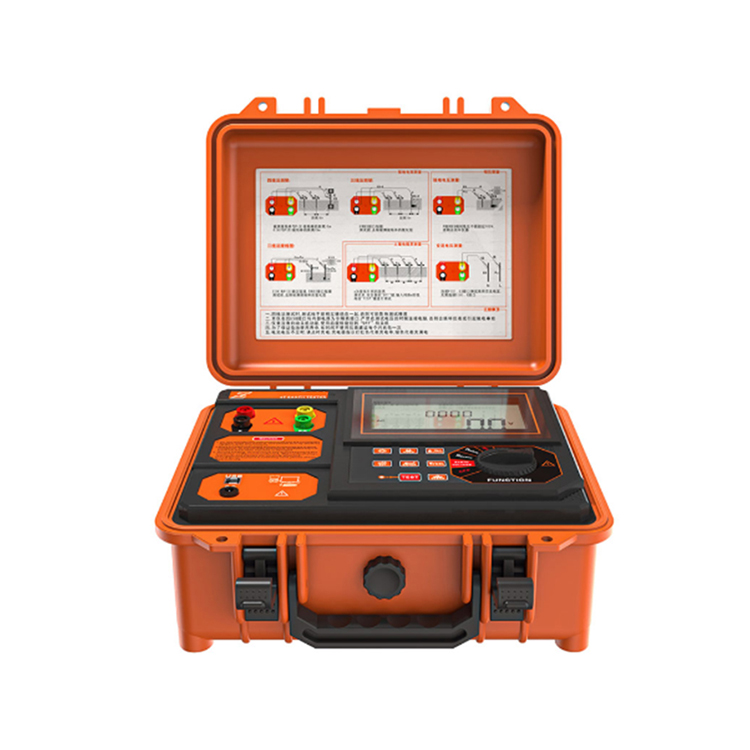

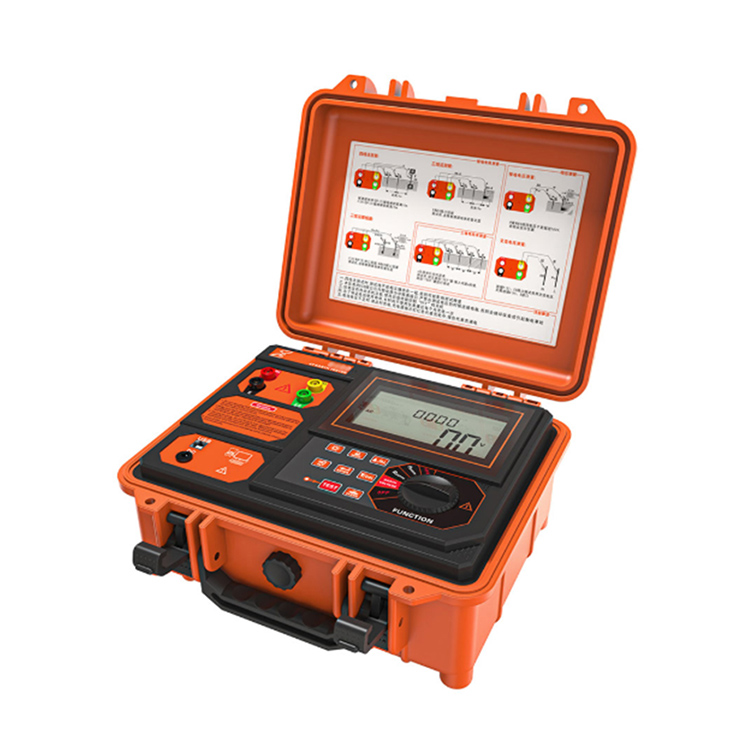

VS-3001 Digital Earth Resistance Tester

VS-3001 Grounding Resistance and Soil Resistivity Tester is specially designed and manufactured for on-site measurement of grounding resistance, soil resistivity, grounding voltage and AC voltage in combination with the new lightning protection grounding resistance testing standard. The test current is up to 20mA. Digital and micro-processing technology, precision 4-wire method, 3-wire method and simple 2-wire method to measure grounding resistance, import FFT (Fast Fourier Transform) technology, AFC (Automatic Frequency Control) technology, automatically identify interference and select measurement frequency, make interference Minimize the impact and provide a more accurate ground resistance value. It has unique anti-interference ability and environmental adaptability, and has good consistency of repeated tests, ensuring high precision, high stability and high reliability of long-term measurement. It is widely used in the measurement of grounding resistance, soil resistivity, grounding voltage and AC voltage of electric power, telecommunications, meteorology, oil field, construction, lightning protection and industrial electrical equipment.

VS-3001 grounding resistance and soil resistivity tester, also known as precision grounding resistance tester, four-wire grounding resistance tester, two-three-four-wire grounding resistance tester, soil resistivity tester , consists of host, data software, test line, Auxiliary ground rods, communication lines, etc. The special tool box type design for the host, using polypropylene plastic as raw material, adding new composite fillers for one-time injection molding , low density, strength, stiffness, hardness, wear resistance, heat resistance, insulation performance is more superior, its box body It can withstand a pressure of about 200kg, ensuring high precision, high stability and high reliability in various environmental tests. The large LCD display of the host, with backlight and bar graph indication, is clear at a glance. At the same time, it can store 300 sets of data, and the functions of historical data reading, viewing, saving, reporting, and printing can be realized through data software.

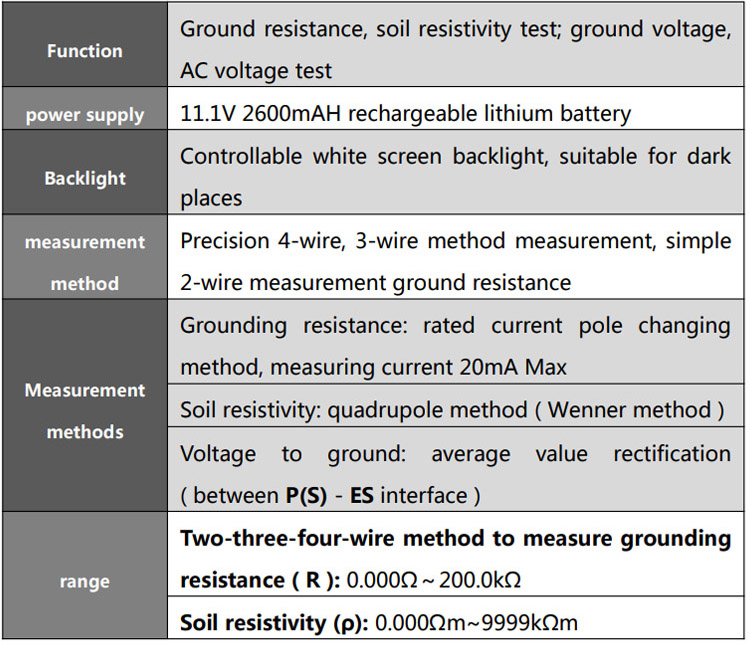

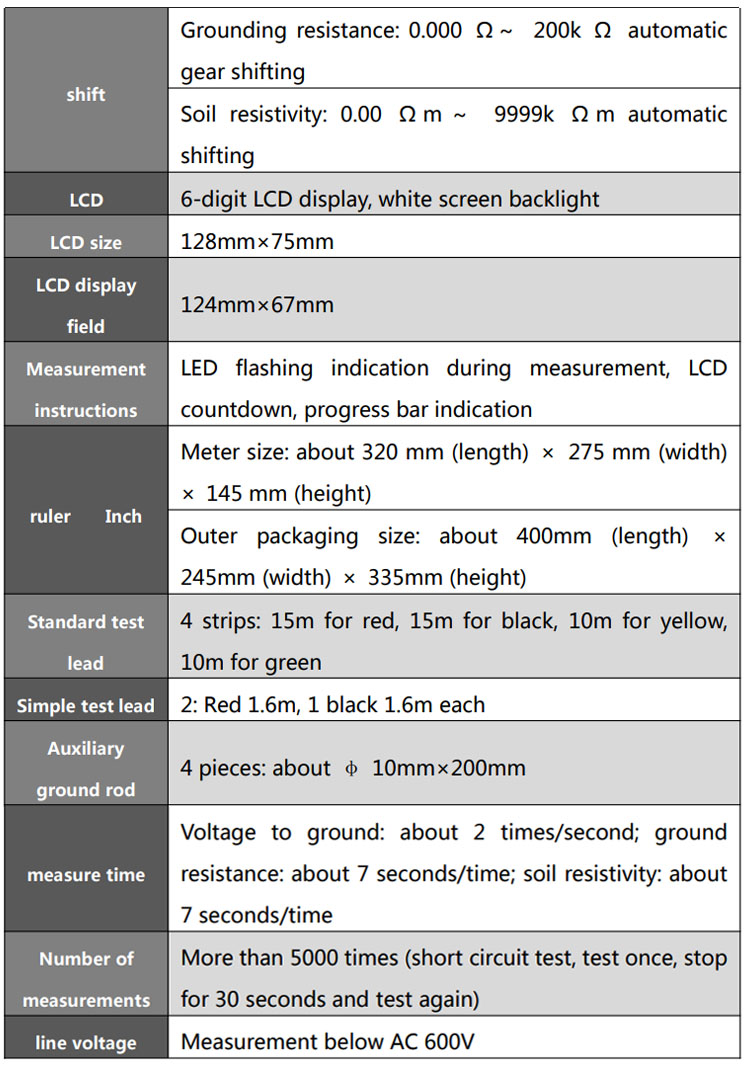

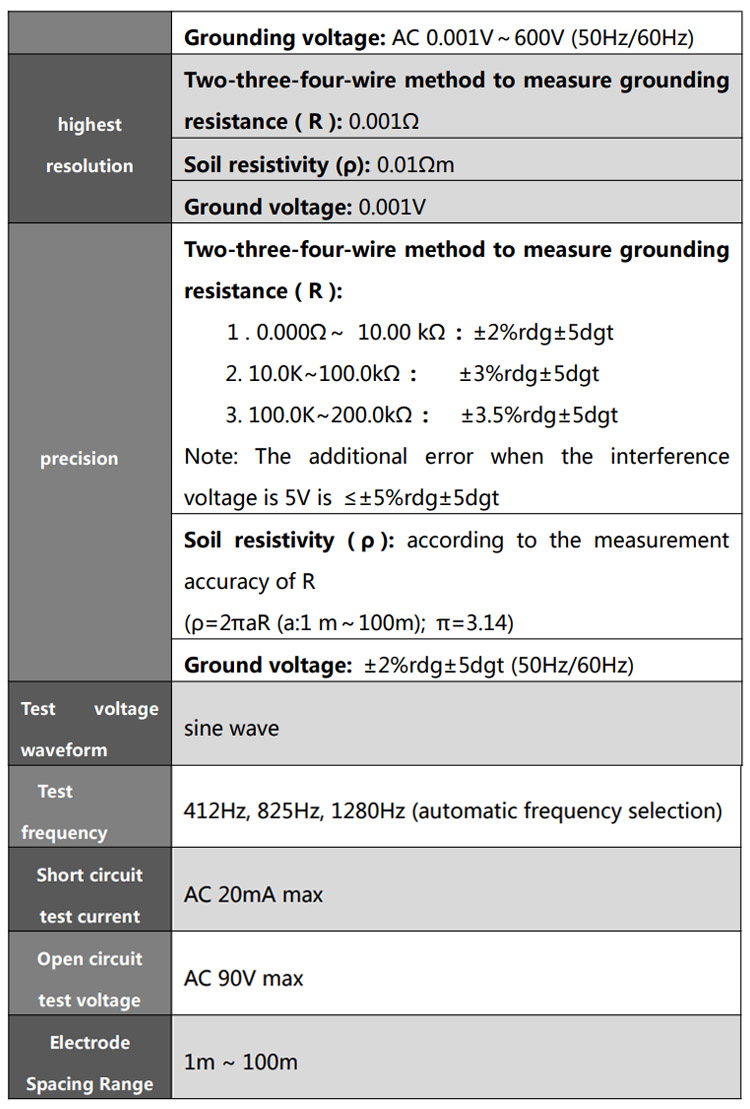

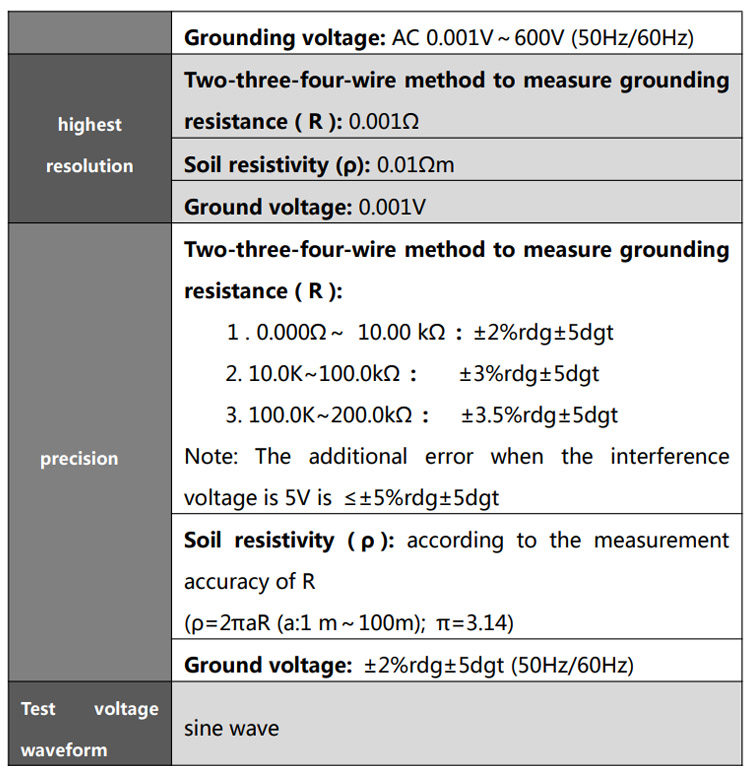

Technical Specifications

Key Features

High Accuracy & Anti-interference‌: Automatic frequency selection (412Hz/825Hz/1280Hz) helps minimize interference. Accuracy in ground resistance measurement can reach ±2%rdg±5dgt for the range 0.000Ω–10.00kΩ.

Robust & Portable Design‌: Comes in an industrial-grade base station toolbox rated to withstand 200 kg of pressure. It is lightweight (base station 2.7 kg) and suitable for field use.

Wide Measurement Range‌: Ground resistance: 0.000Ω–200 kΩ; Soil resistivity: 0.00 Ω·m–9999 kΩ·m; Grounding/AC Voltage: 0.001–600.0 V.

User-Friendly Operation‌: Large LCD with backlight, test progress bar, countdown indicator, and intuitive function dial/buttons. It can automatically detect interference (NOISE warning >5V) and overload conditions (OL display).

Data Management‌: Stores up to 300 sets of data. Data can be held, reviewed, deleted on the device, and transferred via ‌RS232/USB to a PC‌ using provided software for reporting and printing.

Safety Compliance‌: Meets IEC61010-1 (CAT III 300V, CAT IV 150V), with overload protection and clear safety warnings regarding isolation, voltage limits (do not exceed 600V), and proper operation.

Applications

The VS-3001 is widely used across industries that require reliable grounding system testing and soil analysis, including:

Electrical Engineering‌ – Test

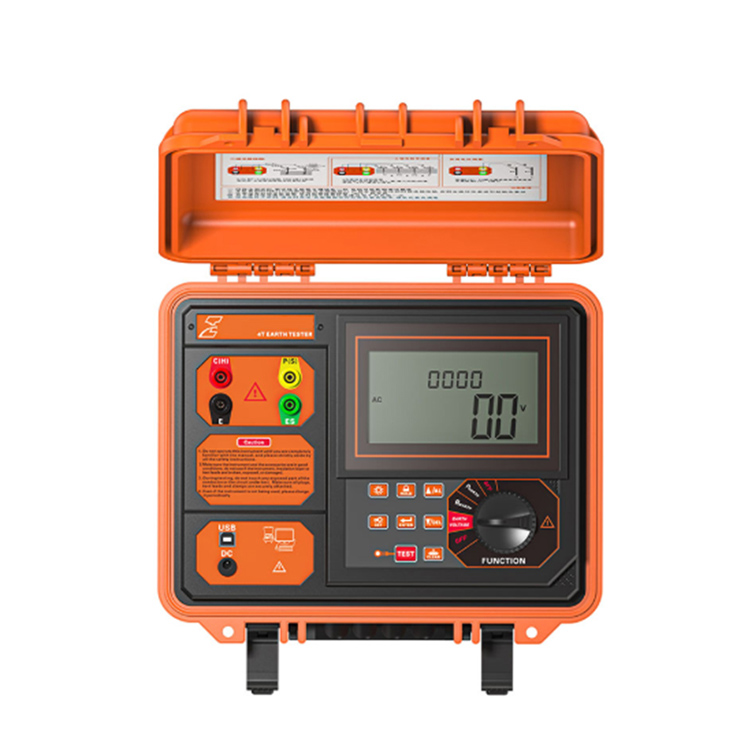

Structure

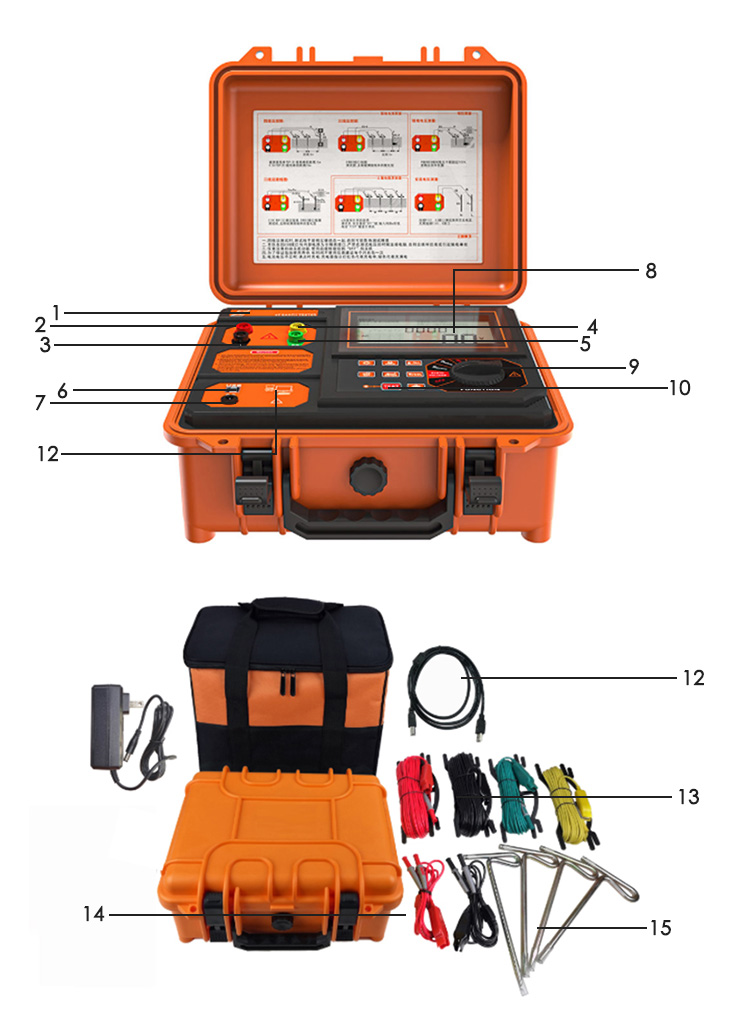

1: Product model placement

2: C(H) interface: current pole

3: E interface: ground pole

4: P(S) interface: voltage pole

5: ES interface

6: USB interface

7: Charging port

8: LCD

9: Function gear button

10: Key area

11: USB data cable

12: S480 meter

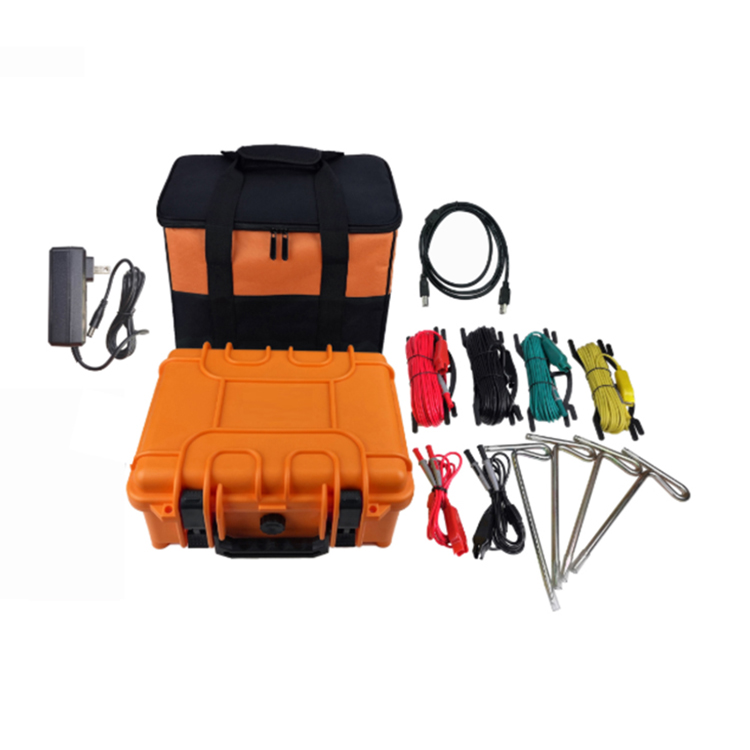

13: 4 standard test lines

14: 2 simple test lines

15: Auxiliary ground rod

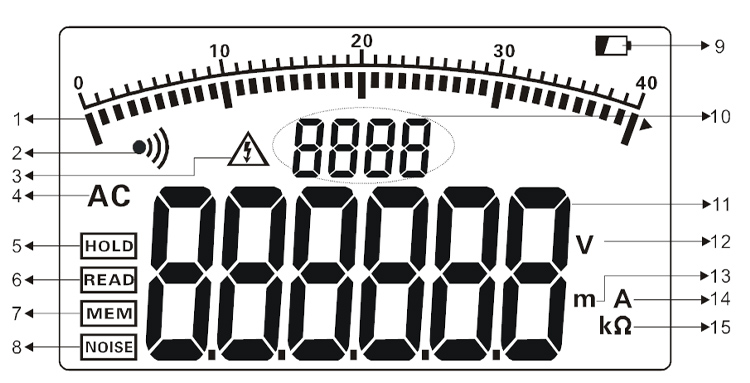

1. Test progress bar graph (display test progress, dynamic display)

2. Alarm indicator (displayed when the alarm function is activated, and flashing when the alarm threshold is exceeded)

3. Overvoltage indication (displayed when the tested voltage exceeds 30V, reminding to pay attention to safety)

4. communication instructions

5. Data hold indication (displayed when the HOLD key is pressed to hold data)

6. Data review instruction (displayed when long press the HOLD button for 3 seconds to enter data review)

7. Data storage indication (displayed when the data is stored while holding the data by pressing the HOLD key)

8. Interference signal indication (displayed when the interference voltage exceeds 5V)

9. Low battery indicator

10. Indication of the number of stored data groups

11. Test Data

12. Voltage unit symbol

13. Length unit symbol

14. Current unit symbol

15. Resistance unit symbol

The company is not responsible for other losses caused by misuse .

The contents of this user manual should not be used as a reason to use the product for a special purpose.
