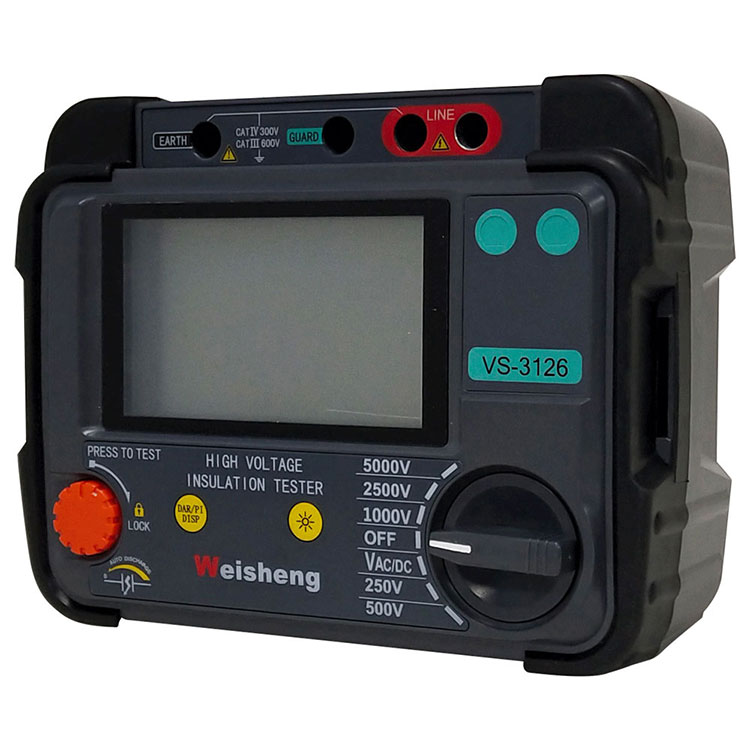

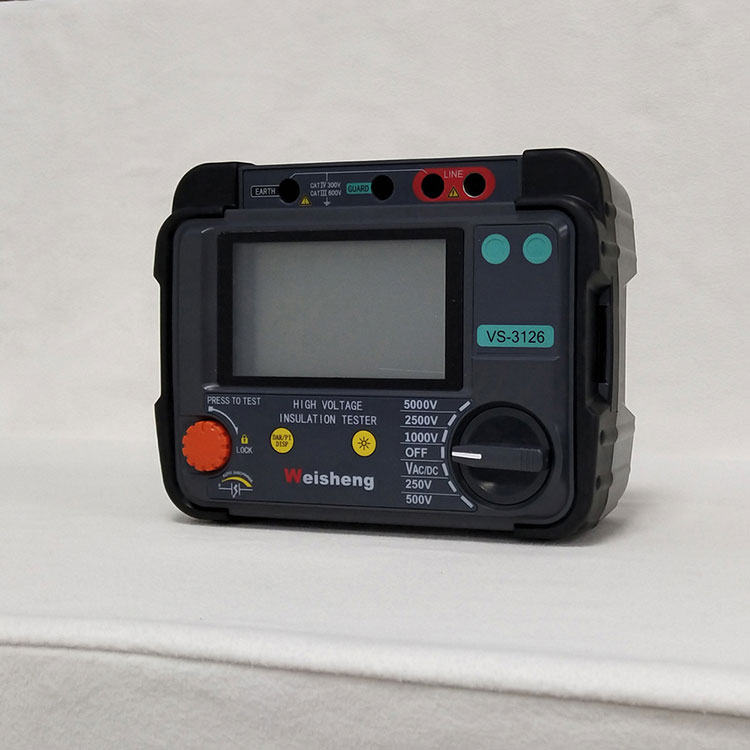

5kV Insulation Tester

Weshine® invented the 5kV Insulation Tester with CE certificate, high quality and accuracy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more details of 5kV Insulation Tester from Weshine!

Send Inquiry    PDF DownLoad

Product Description





Weshine® VS-3121A is a battery powered 5kV Insulation Tester with digital and analogue arc display, designed for high voltage insulation resistance testing in the maintenance and servicing of cables, rotating plant machinery, transformers, switchgear and industrial applications.

DC insulation tests are performed at 250 V, 500 V, 1000 V, 2500 V, 5000 V. Insulation resistance measuring range is 100 k Ω to 1000 G Ω. Automatic discharge for capacitive circuits under test is provided and decaying voltage displayed.

The guard terminal can be used to minimize the effects of surface leakage and hence erroneous measurements when carrying out insulation resistance tests.

For capacitive test objects the instrument will automatically discharge through an internal resistor and indicate voltage across the terminals in the range 30 V to 600 V with higher voltages indicated by ‘Hi’. This feature will give decaying voltage indication following the testing of reactive loads. When the voltage indicator disappears it is safe for the user to disconnect the test leads.

Weshine® VS-3121A 5kV Insulation Tester is powered by eight 1.5 V IEC LR6 (AA) cells. Design safety features include high voltage warning indicator, external voltage display after IR test, automatic discharge of reactive loads and test leads



APPLICATION


Electrical insulating materials deteriorate with time leading to breakdowns and costly repair bills. Insulation resistance testers apply a regulated DC voltage across the insulation and measure current flow through it applying Ohm’s law to calculate insulation resistance. The current flows because no insulation material is perfect.

IR tester uses include:

■  Product test and qualification

  Installation of equipment

  Routine maintenance

  Problem resolutions



Insulation testing with high voltage DC affects insulation polarisation such that consecutive testing without complete discharge of the unit under test will yield different results.

Care should be taken to always employ the same process and technique of connecting to and testing an insulator to be able to trend results. It is important to record temperature of the insulation as well as IR values


FEATURES AND BENIFITS


  Compact, rugged insulation resistance tester

  Easy operation and voltage range selection

  AC and DC voltmeter (30 V - 600 V)

  User settable IR test timer (default 1 min), (max. 19 m 50 s)

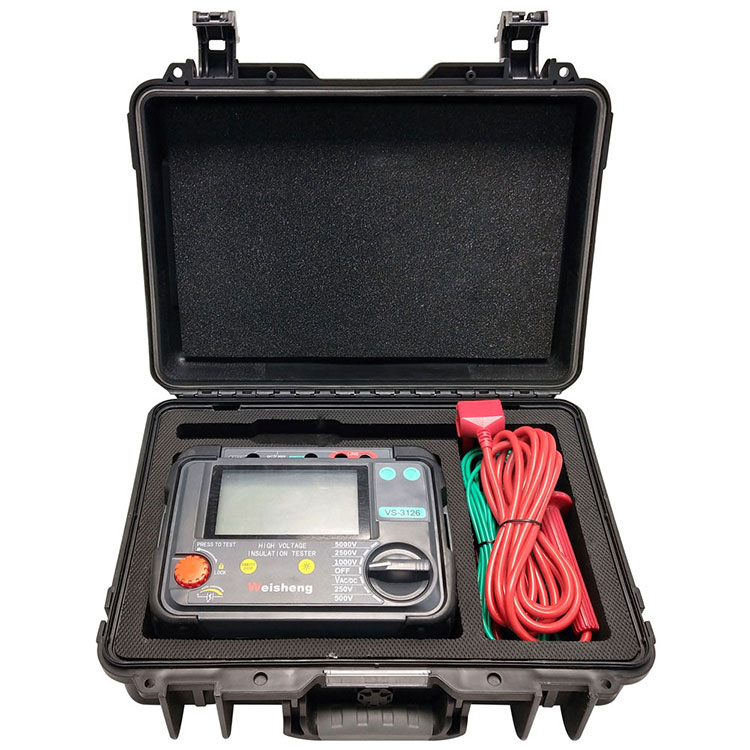

  Soft carry case for instrument and leads

  Quick start and full user guide

  Locking HV insulated plugs for additional safety

  Shutters across terminals prevent accidental ingress of dirt and other objects


SPECIFICATIONS


Insulation range

0.1 MΩ to 2 TΩ

Nominal test voltages

250 V, 500 V, 1000 V, 2500 V, 5000 V

Terminal voltage accuracy



<1000 V 0...+10% of nominal

test voltage



≥1000 V 0...+5% of nominal

test voltage

Insulation accuracy

±5% ±3 digits

Short circuit current

5 mA ±0.5 mA

Voltmeter accuracy

±2%rdg±3dgt

Power supply

8 x LR6/AA batteries

Operating temperature range and humidity



- 20°C to +45 °C

Humidity

80% RH

Storage temperature range and humidity



-20 °C to +60 °C

Safety protection

Insulation Cat III 600 V

Note

Service error with stated environmental limits is twice intrinsic error

EMC

Conforms to IEC 61326-1:2013

Dimensions

177 mm x 226 mm x 100 mm

Weight

1.9 kg(include the battery)


VS-3121


The VS-3121 5kV Insulation Tester has been designed for Electrical and Industrial test applications, where operation voltages exceed 1000 V and higher insulation test voltages are required.

Unlike the VS-3121A, the VS-3121 offers fixed range voltages of 50 V, 100V, 250 V, 500 V, 1000 V and 2500 V.



Equipment with operating voltages above 1 kV requires commensurately higher test voltages. To be in full conformance with the most modern testing requirements, Weshine offers a family of high-quality 5kV Insulation Testers at voltages above 1 kV. At the core of high-voltage testing, our 5/10/15 kV units afford the highest level of quality testing along with prime safety, convenience and portability.

For complete insulation testing capability of all high-capital  equipment, Weshine goes one step further! The universal testing standard for rotational equipment, IEEE 43-2000, increased the test voltage recommendation to 10 kV for equipment rated 12 kV and above. Full compliance with this standard can be attained with just one tester, our 10 kV model.





VS-3127

The VS-3127 5kV Insulation Tester offers the ability to perform accurate insulation resistance measurements up to 15 kV test voltage with a maximum resistance of 30 TΩ. Resistance measurement accuracy is ± 5 % from 1 MΩ to 3 TΩ!

For utilities and service companies the VS-3127 is an all-around tester with its flexibility and future proofing capability. The Weshine VS-3127 is designed to work wherever you work.

Output rated voltage max reach 7 gears (250V,500V,1KV,2.5KV,5KV,10KV,15KV).

Max short circuit current 7mA

Insulation resistance test (IR), polarization index test(PI), dielectric absorption ratio test(DAR). Ramp test mode (RAMP), filtered resistance test mode (FR). *Capacitance Test (Cap.).

Voltage monitor function, automatically monitoring the live voltage of the measured




WHY TEST AT 15 KV?



5 kV to 15 kV will triple test current - this can prevent negative test current in the presence of high noise.

15 kV is specified for assets of 35,000 V to 69,000 V based on NETA ATS 2007.

Motors above 34,500 V should be tested at 15 kV based on NETA ATS 2007.


SPECIFICATIONS


Insulation range

0.1 MΩ to 30 TΩ

Nominal test voltages

250 V, 500 V, 1 kV, 2.5 kV, 5 kV, 10 kV, 15kV

Terminal voltage accuracy



(5%~10%)±10V

Insulation accuracy

1 MΩ to 3 TΩ, ±5% ±3 digits



>3 TΩ, ±20% ±3 digits

Short circuit current

≥7 mA ±0.5 mA

Ramp test mode

±2%rdg±3dgt

Power supply

Step up to the preset voltage by testing with 10% stepped size of preset voltage

Operating temperature range and humidity



- 20°C to +50 °C

Humidity

80% RH

Storage temperature range and humidity



-25 °C to +65 °C

Voltage test

AC/DC:0V~1000V,

Accuracy: ±5%rdg±3V

Capacitance test

10nF~25uF,

Accuracy: ±10%rdg±10nF

Current test

0.01nA~7mA,

Accuracy: ±5%rdg±0.5nA

Safety protection

Insulation Cat III 600 V

Note

Service error with stated environmental limits is twice intrinsic error

EMC

Conforms to IEC 61326-1:2013

Dimensions

280 mm x 260 mm x 160 mm

Weight

4.9 kg(include the battery)




Selections


Weshine has 8 years of experience specifically for deal with complete range of Electrical Equipment. At present, Weshine has invented various 5kV Insulation Tester for each step as shown as form:


ORDERING INFORMATION FOR 5kV Insulation TesterS

Cat. No.

Max Test Voltage

Max Test Range

IR/PI/DAR

RAMP

FR

Cap.

VS-3121

2.5 kV

100 GΩ







VS-3121A

5.0 kV

20 TΩ







VS-3125

5.0 kV

10 TΩ



VS-3125A

5.0 kV

10 TΩ

VS-3126

10.0 kV

20 TΩ



VS-3126A

10.0 kV

20 TΩ

VS-3127

15.0 kV

30 TΩ





Based on Supply Chain issues: Please contact your preferred Authorized Weshine Distributor for current pricing and lead times.
