Handheld Transformer DC Winding Resistance Tester

In electrical asset management—where transformer reliability directly impacts critical infrastructure—the VS-3110S Handheld Transformer DC Winding Resistance Tester stands as a compact, field-ready transformer test instrument. Unlike bulky cabinet-style testers or basic handheld milliohm meters that sacrifice full transformer test functions for light weight, it redefines field testing standards by packing high-precision measurement and core automated workflows into a lightweight handheld form factor, catering to field service engineers, maintenance technicians, and asset managers who regularly perform on-site transformer diagnostics.

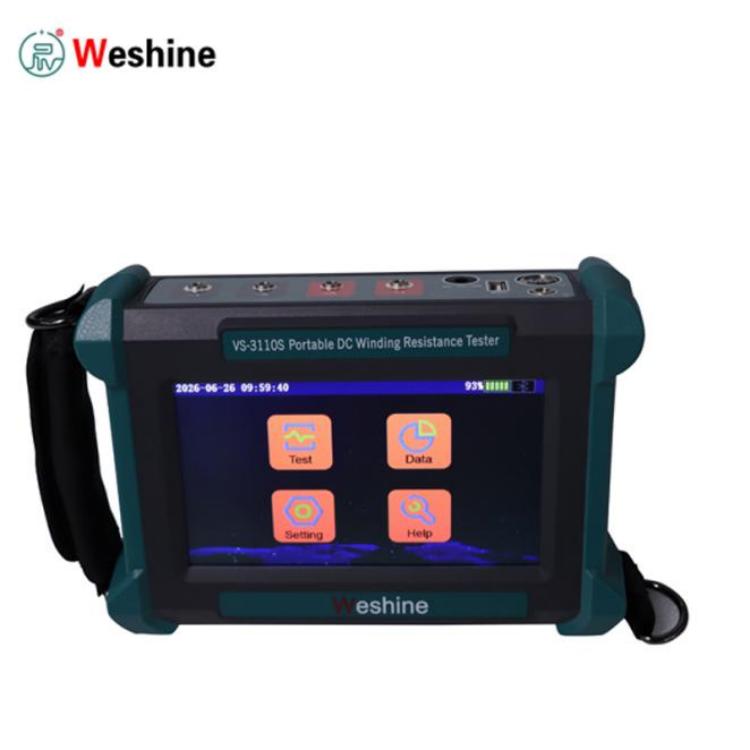

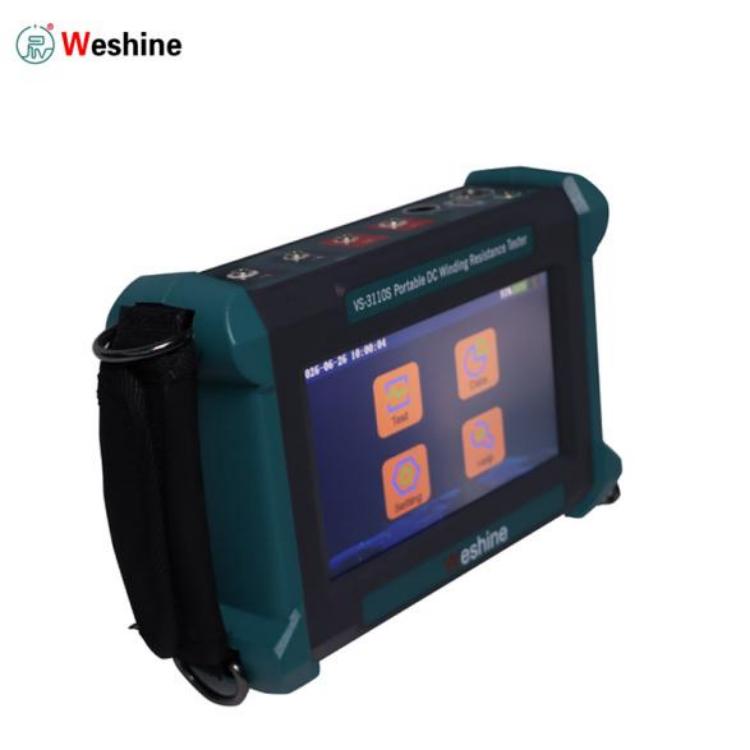

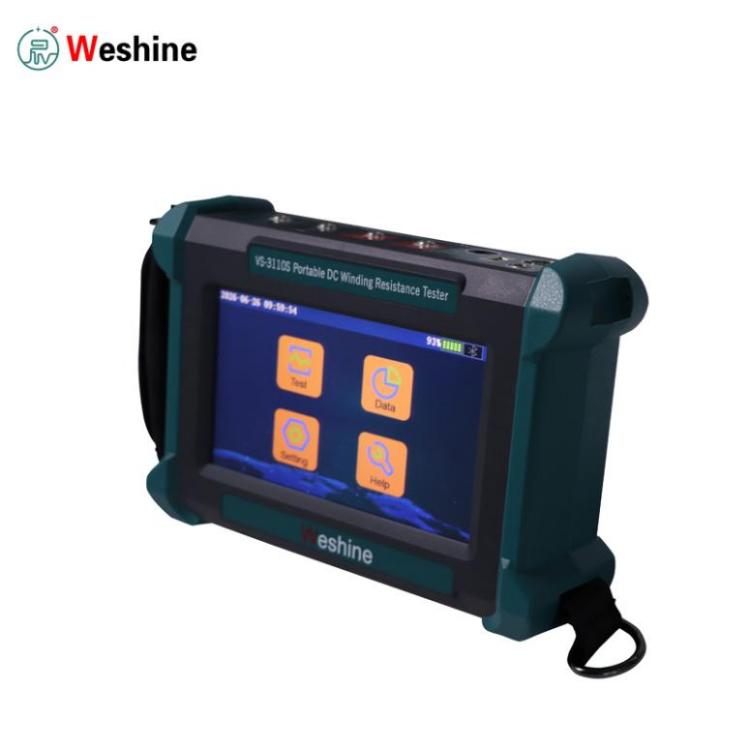

VS-3110S Handheld Transformer DC Winding Resistance Tester: Precision Transformer Testing in the Palm of Your Hand

In electrical asset management—where transformer reliability directly impacts critical infrastructure—the VS-3110S Handheld Transformer DC Winding Resistance Tester stands as a compact, field-ready transformer test instrument. Unlike bulky cabinet-style testers or basic handheld milliohm meters that sacrifice full transformer test functions for light weight, it redefines field testing standards by packing high-precision measurement and core automated workflows into a lightweight handheld form factor, catering to field service engineers, maintenance technicians, and asset managers who regularly perform on-site transformer diagnostics.

A New Benchmark for On-Site DC Resistance Testing

DC resistance testing is foundational for transformer health assessment, yet traditional testing brings obvious pain points for field crews. Large suitcase testers are cumbersome to carry up substations and narrow equipment rooms; simple handheld low-resistance meters lack transformer-specific logic, requiring manual current setup, phase-by-phase recording and manual temperature conversion. These drawbacks extend site work hours, introduce human error, and slow down fault screening on site.

The VS-3110S closes this gap as a dedicated handheld dc winding resistance tester. It quickly identifies winding anomalies, loose connection points, poor crimping and manufacturing defects before they escalate into outages. Built for single-phase and three-phase distribution transformers, CTs and PTs, it brings standardized, data-backed testing to remote sites where transporting heavy test gear is impractical. Unlike generic handheld milliohm meters limited to simple low-resistance readings, the VS-3110S is purpose-built for transformer winding test scenarios.

VS-3110S: Core Handheld Capabilities & Typical Applications

The VS-3110S is far more than a basic handheld milliohm meter; it is a fully functional transformer test tool optimized for mobility without compromising measurement precision.

This handheld tester supports single-phase and three-phase transformers, with intelligent automatic current ranging to cut manual setup work and reduce wiring mistakes. For three-phase transformers with neutral terminals, automatic temperature correction and sequential phase auto-test streamline the whole workflow, greatly shortening on-site test cycles — a huge advantage for utility field teams and industrial maintenance crews where every minute of transformer outage counts. Unlike separate bulky instruments for different winding configurations, the VS-3110S consolidates routine winding resistance tests into one lightweight handheld unit.

Intelligent Mode Recognition & On-Site Fault Screening

One key differentiator: automatic recognition of star (Y) and delta (Δ) winding configurations for three-phase transformers, removing guesswork and keeping measurement consistency across different assets. It operates as a high-precision milliohm meter for winding resistance capture, picking up tiny resistance shifts that signal early winding degradation or bad joints. This versatility fits transformer factory QC, repair shop re-verification after overhaul, and routine substation patrol inspection. Technicians no longer need to carry multiple separate instruments for field checks.

Precision, Ruggedness & Portable Data Management

Precision: 16-bit AD converter delivers ±0.2% measurement accuracy matching bench milliohm meter performance, capturing subtle resistance deviation down to 0.0001μΩ to support early fault warning. Safety: Built-in overvoltage, overcurrent and automatic discharge protection safeguards both the tester and the transformer under test, a critical feature for fast-paced field environments. Data Handling: Large internal memory stores hundreds of test records for traceability and compliance reporting; records can be exported via communication port for office review, eliminating the risk of handwritten data loss common in field work. Handheld Durability: Reinforced shock-resistant housing with dustproof casing fits tight substation bays, pole-top transformer jobs and outdoor industrial sites. It fills the gap left by heavy fixed or suitcase-style transformer testers that are hard to transport for patrol and spot checks.

Technical Specifications: Field-Oriented Performance

The VS-3110S outperforms generic handheld low-resistance meters with transformer-focused technical parameters: Measurement Precision: 0.0001μΩ resolution captures minor resistance changes for incipient fault detection. Wide selectable test current and resistance ranges cover distribution transformers, instrument transformers and small industrial transformers. Environmental Adaptability: Stable operation from -10°C to 50°C, ≤85% RH, performing reliably in outdoor substations, dusty workshops and humid field conditions where delicate general-purpose handheld meters struggle. User-Centered Handheld Design: Large clear display readable under strong sunlight, simplified menu navigation to cut training time, auto power-off to preserve built-in lithium battery for all-day field shifts. RS232 / USB data output supports upload to maintenance management systems — rarely available on entry-level handheld resistance meters.

Competitive Edge for Field Transformer Maintenance

For teams prioritizing mobility, speed, accuracy and safety, the VS-3110S handheld transformer dc winding resistance tester delivers unique value: Field Mobility: Lightweight handheld form eliminates the hassle of transporting large test cases, letting one technician complete winding resistance tests during routine patrols. Wide Compatibility: Works with single-phase / three-phase, star and delta configured windings, trimming down the number of tools technicians need to bring to site. Dependable Field Performance: Lab-grade milliohm measurement accuracy, complete protection circuits and rugged construction deliver stable readings, lowering risks of missed defects or unnecessary maintenance, while extending service life even with frequent field use.

Conclusion: A Must-Have Field Asset

For field professionals responsible for transformer health, the VS-3110S is more than a meter — it is a portable strategic asset. As a dedicated handheld transformer test instrument, it merges high-end dc winding resistance testing and precision milliohm measurement in one compact unit.

By enabling fast on-site early fault detection, simplifying field workflows and supporting industry compliance, it empowers maintenance crews to keep electrical assets running reliably. It is not just an upgrade in dc resistance testing; it marks a new era of agile, accessible transformer asset management for field service teams.
