DC Resistance Tester

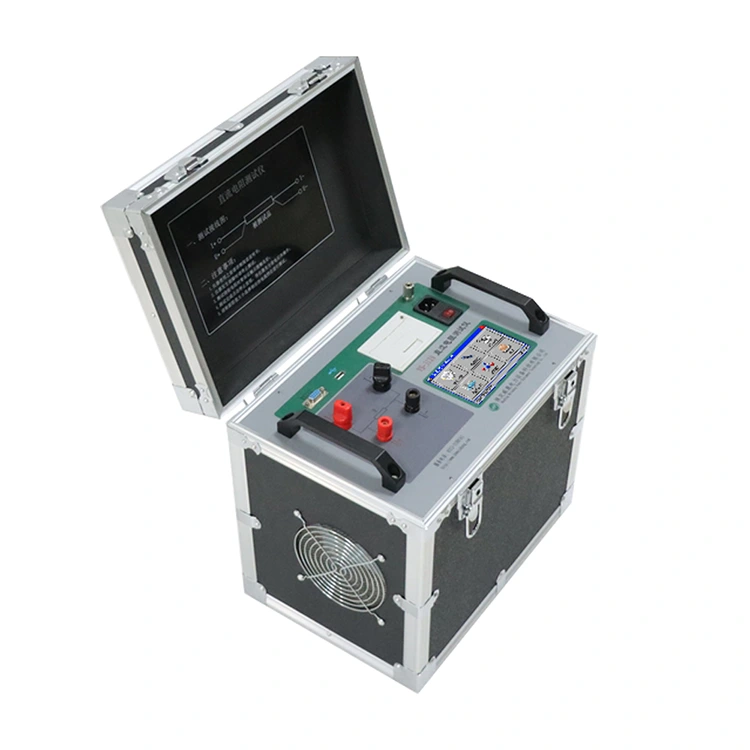

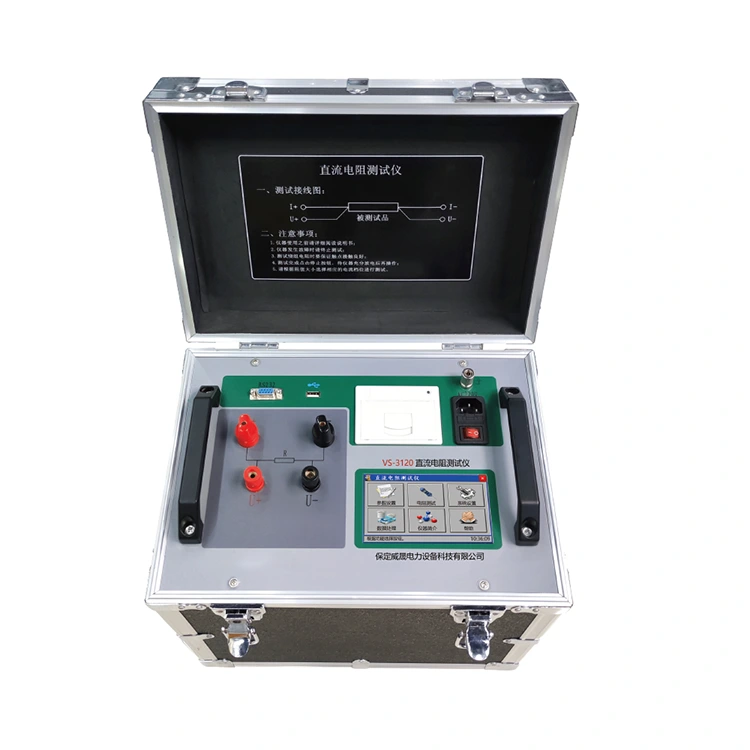

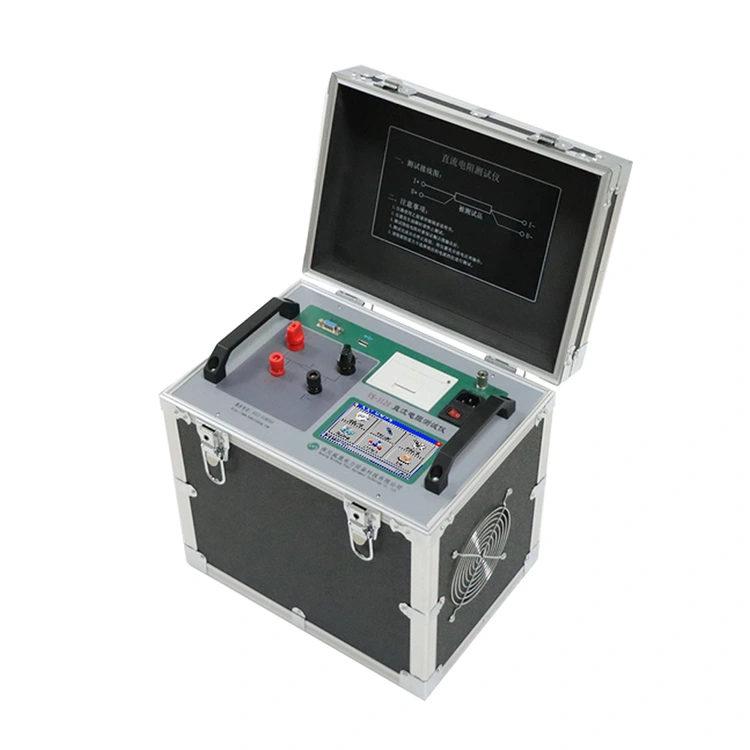

The VS-3120 DC Resistance Tester: A Must-Have for Transformer and Motor Maintenance

Electrical systems rely on the integrity of transformers, motors, and cables—and the VS-3120 Single Phase Transformer DC Resistance Tester is the tool that ensures that integrity. This in-depth guide explores how the VS-3120 elevates DC resistance testing for industry professionals, focusing on its applications, technical specs, and competitive edge.

The Role of DC Resistance Testing in Electrical Asset Management

DC resistance testing is a cornerstone of predictive maintenance and quality assurance for electrical equipment. For transformers, it reveals issues like loose connections, manufacturing defects, or winding irregularities before they escalate into catastrophic failures. For motors and cables, it uncovers hidden faults that could lead to unexpected downtime or safety hazards. The VS-3120 is purpose-built to execute these tests with unparalleled accuracy, making it a vital component of any electrical maintenance program.

VS-3120: Engineered for Precision in Diverse Applications

The VS-3120 is not just a tester—it’s a solution tailored to the complexities of modern electrical systems. Let’s explore its core applications and technical fit.

Transformer Testing: Targeting Medium-Sized Assets

Transformers below 18000kVA fall within the VS-3120’s optimal range. Whether you’re testing new transformers during commissioning or conducting routine maintenance on existing units, the VS-3120’s precise measurements identify winding inconsistencies, short circuits, or terminal connection issues. This proactive testing prevents outages and extends transformer lifespan.

Motor and Cable Diagnostics

For motors, the VS-3120’s 10A (with 20A recommended for high-capacity motors) current range delivers accurate resistance readings, enabling early detection of stator/rotor winding degradation. In cable testing, the tester accounts for length, voltage grade, and cross-sectional area to pinpoint issues like conductor corrosion or insulation flaws—critical for maintaining the reliability of power distribution networks.

Technical Specifications That Set the VS-3120 Apart

The VS-3120’s technical design reflects a commitment to accuracy, durability, and usability:

Measurement Precision: With ranges like 10A (1mΩ–2Ω) and 20A (100μΩ–1Ω), and a resolution of 0.0001μΩ, the VS-3120 detects even minute resistance variations—essential for identifying incipient faults.

Environmental Resilience: Rated for operation between -10°C and 50°C, the tester performs reliably in diverse climates and job site conditions.

Practical Design: Its compact dimensions (340mm×260mm×330mm) and 12kg weight make it portable, while its rugged construction ensures it withstands the rigors of industrial use.

The Competitive Edge of the VS-3120

In a market saturated with testing equipment, the VS-3120 distinguishes itself through:

Multi-Asset Compatibility: A single tool for transformers, motors, and cables reduces equipment costs and simplifies inventory management.

Uncompromising Accuracy: Its 0.2 accuracy class ensures that test results are trustworthy, supporting data-driven maintenance decisions.

User-Centric Interface: Designed for efficiency, the VS-3120 minimizes setup time and training requirements, allowing technicians to focus on what matters—delivering reliable electrical systems.

For electrical professionals and businesses prioritizing asset reliability, the VS-3120 Single Phase Transformer DC Resistance Tester is more than a tool—it’s a strategic partner in maintaining operational excellence, ensuring safety, and optimizing the lifecycle of electrical equipment. Invest in the VS-3120 and elevate your DC resistance testing to new levels of precision and efficiency.
