Single Phase Transformer DC Resistance Tester

VS-3120 Single Phase Transformer DC Resistance Tester: A Professional Guide for Accurate Electrical Testing

In the realm of electrical equipment maintenance and testing, the VS-3120 Single Phase Transformer DC Resistance Tester stands out as a pivotal tool for ensuring the reliability and safety of transformers, motors, cables, and more. This article delves into the technical prowess, applications, and functional advantages of the VS-3120, catering to industry professionals and businesses seeking precision in their electrical testing workflows.

Understanding the Significance of DC Resistance Testing

DC resistance testing is a critical procedure in the lifecycle of electrical equipment—from semi-finished transformer production to final product inspection, initial commissioning, and periodic preventive maintenance. For transformers, this test effectively uncovers hidden defects such as loose connections, manufacturing flaws, and potential safety hazards that could escalate into failures during operation. The VS-3120 is engineered to deliver accurate, efficient DC resistance measurements, making it an indispensable asset for electrical engineers, maintenance teams, and quality control specialists.

VS-3120: Technical Capabilities and Application Scope

The VS-3120 Single Phase Transformer DC Resistance Tester is designed to measure DC resistance across a range of electrical assets, including transformers, motors, and cables. Its technical specifications and application-centric design make it a versatile choice for professionals in power generation, transmission, manufacturing, and more.

Transformer Application and Model Suitability

When selecting a DC resistance tester for transformers, capacity and voltage levels are key. The VS-3120 is optimized for transformers below 18000kVA, making it ideal for medium-sized transformer fleets in industrial and commercial settings. Accurate DC resistance measurements enable users to detect winding faults, uneven turns, or connection issues that could compromise transformer performance and longevity.

Motor and Cable Testing

For motors with capacities reaching hundreds of thousands of watts, the VS-3120’s 10A measurement capability (with 20A recommended for larger motors) ensures precise resistance readings. This allows for early detection of stator or rotor winding degradation, preventing unexpected motor failures.

In terms of cable testing, the VS-3120’s performance is tailored to cable length, voltage grade, and cross-sectional area. It provides reliable resistance measurements to identify issues like corroded conductors, insulation breakdown, or inconsistent cable quality—critical for maintaining the integrity of electrical distribution systems.

Technical Excellence of the VS-3120

The VS-3120 is built to deliver accuracy, resolution, and durability in demanding industrial environments. Here’s a breakdown of its technical strengths:

Measurement Range & Resolution: The tester offers multiple current and resistance ranges, including 10A (1mΩ–2Ω), 20A (100μΩ–1Ω), and more, with a resolution as fine as 0.0001μΩ. This level of precision ensures that even the smallest resistance deviations—indicative of 潜在 faults—are detected.

Accuracy & Temperature Range: With an accuracy class of 0.2, the VS-3120 guarantees reliable results in temperatures ranging from -10°C to 50°C, making it suitable for both indoor and outdoor testing scenarios.

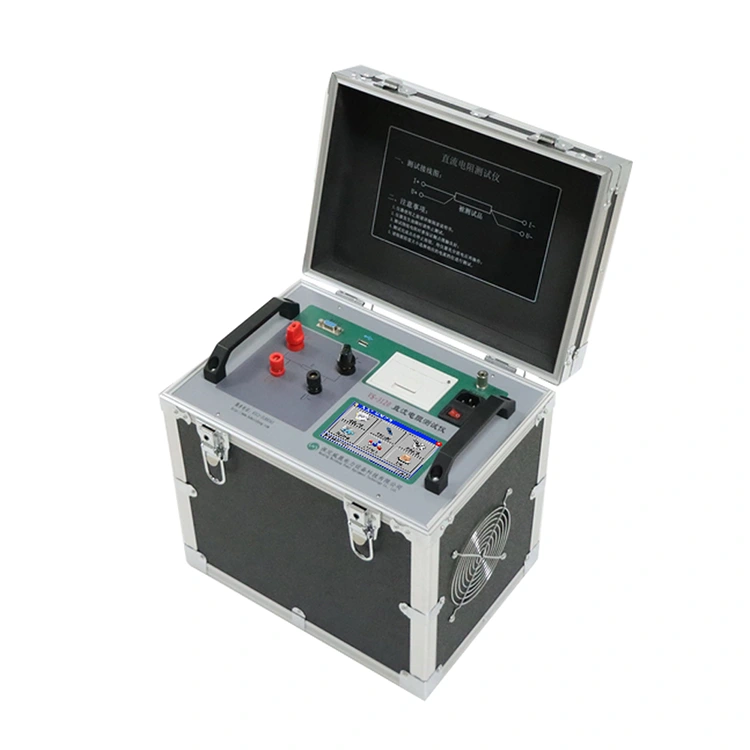

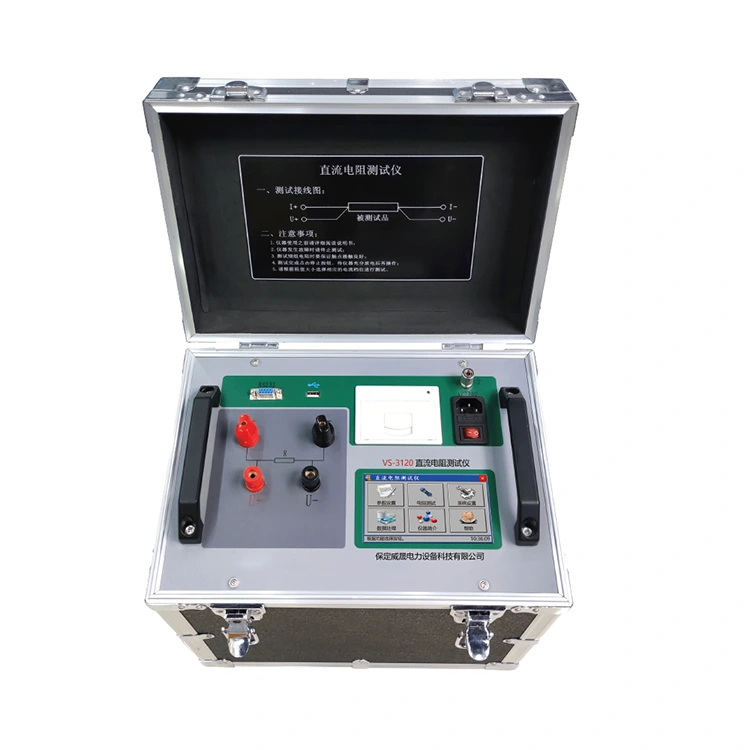

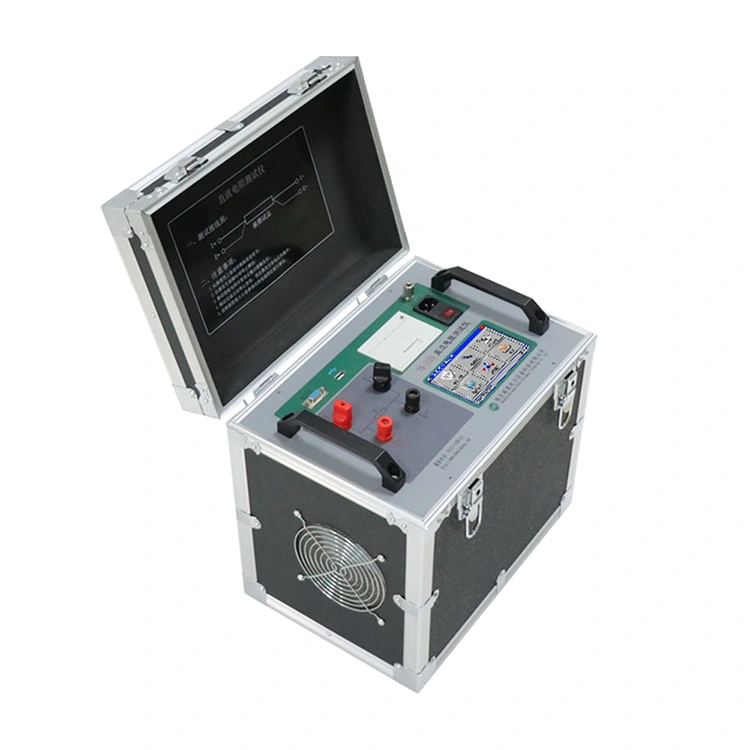

Build & Portability: Housed in a robust enclosure, the VS-3120 balances durability and portability, with a compact design (340mm×260mm×330mm) and a weight of 12kg—easy to transport between job sites while withstanding industrial wear and tear.

Why Choose the VS-3120 for Your Electrical Testing Needs?

In a landscape where equipment reliability and safety are non-negotiable, the VS-3120 offers distinct advantages:

Versatility: Beyond transformers, it serves motors and cables, eliminating the need for multiple specialized testers and streamlining workflow.

Precision: Its high resolution and accuracy ensure that no fault goes undetected, reducing the risk of equipment failure and costly downtime.

Ease of Use: Designed with industry professionals in mind, the VS-3120 combines advanced functionality with user-friendly operation, minimizing training time and maximizing productivity.

For businesses and professionals seeking a dependable solution for DC resistance testing, the VS-3120 Single Phase Transformer DC Resistance Tester is a strategic investment—empowering you to maintain electrical assets with confidence, comply with industry standards, and ensure uninterrupted operations.
