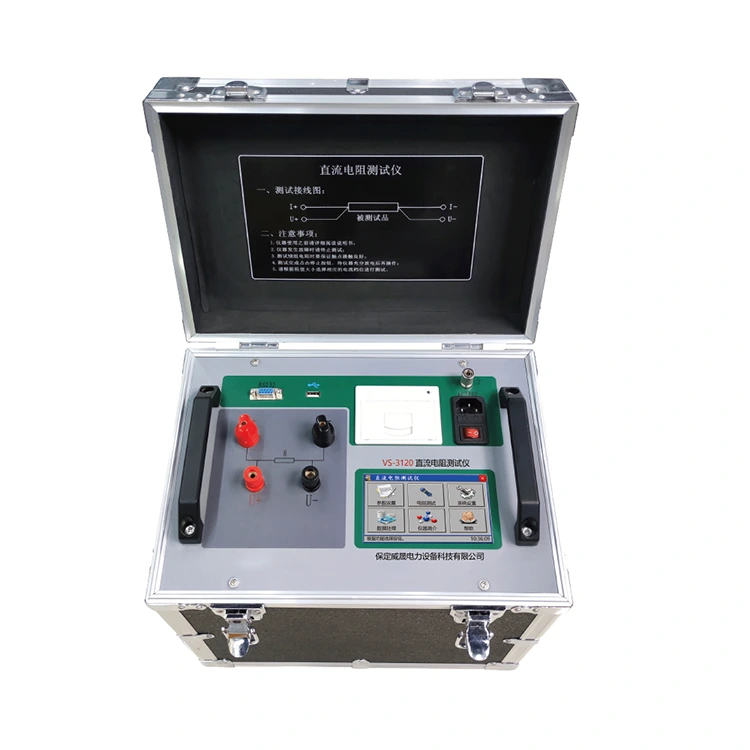

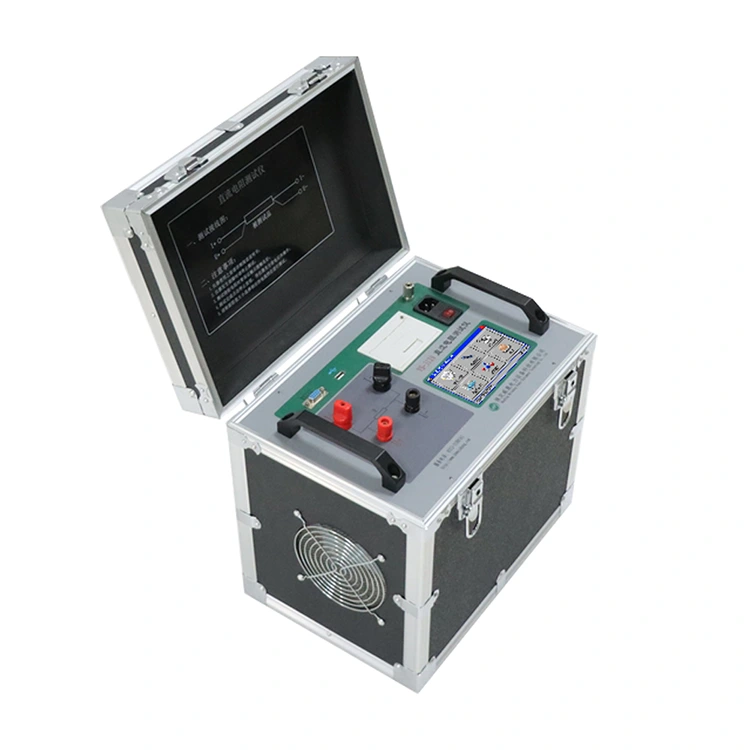

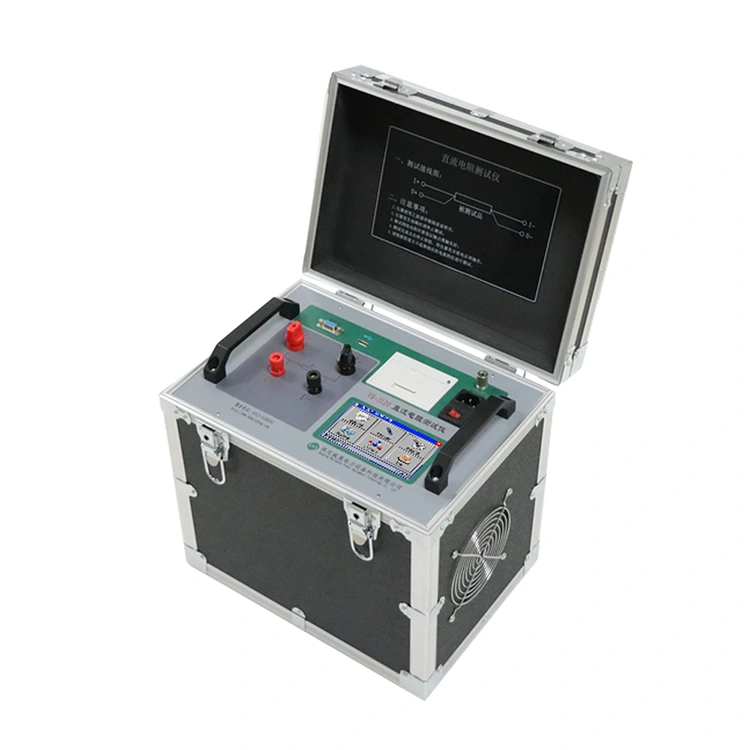

VS-3140 DC Resistance Tester: Elevating Precision in High-Capacity Electrical Asset Maintenance

In the world of high-capacity electrical equipment—where transformers, motors, and cables power power plants, industrial facilities, and transmission networks—reliable testing tools are the backbone of preventive maintenance. For industry experts who demand excellence, the VS-3140 Single Phase Transformer DC Resistance Tester stands out as a specialized transformer winding resistance tester that redefines precision. Unlike generic winding resistance meter models or basic winding resistance tester units that struggle with large-scale assets, the VS-3140 is engineered to handle the unique challenges of high-capacity electrical systems, delivering accuracy, durability, and efficiency that align with the stakes of critical infrastructure maintenance.

The Imperative of DC Resistance Testing—And Why the Right Winding Resistance Tester Matters

High quality Transformer DC Resistance Testerg is non-negotiable for high-capacity electrical assets: it’s the only way to uncover hidden defects before they escalate into catastrophic failures. For large transformers (the workhorses of power grids), it detects loose terminal connections, manufacturing flaws in windings, or uneven turn counts—issues that, if ignored, could cause overheating, insulation breakdown, or complete transformer failure. For high-powered motors and extensive cable networks, it identifies performance-killing faults like stator winding degradation or conductor corrosion, preventing unplanned downtime that can cost businesses thousands in lost productivity.

But not all testing tools are up to this task. Basic winding resistance meter units lack the precision to detect subtle resistance deviations in large assets (e.g., a 0.01Ω shift in a 200,000kVA transformer’s winding). Generic winding resistance tester models often can’t deliver the high current needed to overcome the low resistance of large transformer windings, leading to inaccurate readings. The VS-3140 solves this gap: as a dedicated transformer winding resistance tester, it’s built to meet the rigorous demands of high-capacity assets, ensuring that no critical fault slips through the cracks—whether you’re testing a 400,000kVA transformer or a mile-long industrial cable.

VS-3140: A Deep Dive into Applications—More Than Just a Transformer Winding Resistance Tester

The VS-3140 isn’t limited to one type of asset; it’s a versatile winding resistance tester that adapts to the complexities of high-capacity electrical systems. Its applications are tailored to the tools that keep industries running, from transformers to motors and cables.

Transformer Testing: Scaled for Large Assets (Up to 400,000kVA)

For power plants, industrial facilities, and transmission networks, transformers below 400,000kVA are critical—and the VS-3140 is the ideal transformer winding resistance tester for these assets. Unlike smaller winding resistance meter models that max out at low current ranges, the VS-3140 delivers the high current (up to 40A) needed to get accurate readings from large transformer windings. This precision lets maintenance teams detect even the smallest irregularities: a slight resistance increase across phases might signal a turn-to-turn short, while inconsistent readings at terminals could point to loose connections. By catching these issues early, the VS-3140 extends the lifespan of high-value transformers, reduces maintenance costs, and protects against power outages that disrupt entire operations.

Motor Diagnostics: Proactive Protection for Heavy-Duty Motors

High-capacity motors (e.g., those used in manufacturing lines or water treatment plants) rely on healthy windings to operate. The VS-3140 acts as a reliable winding resistance tester for these motors, with measurement ranges that support accurate readings of stator and rotor windings. It detects early signs of degradation—like increased resistance from overheating or insulation wear—before the motor fails mid-operation. This proactive approach is far more effective than reactive repairs: instead of shutting down production to fix a broken motor, teams can schedule maintenance during planned downtime, minimizing disruption. Unlike a basic winding resistance meter that might miss subtle changes, the VS-3140’s precision ensures that motor health is monitored with confidence.

Cable Testing: Ensuring Power Distribution Integrity

Extensive cable networks (e.g., those in industrial facilities or transmission corridors) are prone to issues like conductor corrosion or insulation breakdown—problems that can cause short circuits or power loss. The VS-3140 excels as a winding resistance tester for cables, too: it factors in critical variables like cable length, voltage grade, and cross-sectional area to deliver dependable resistance measurements. For example, a 10-mile cable with corroded conductors will show a higher resistance than a healthy one—and the VS-3140 captures this difference, alerting teams to potential issues. Unlike generic winding resistance meter models that provide one-size-fits-all readings, the VS-3140 adapts to cable-specific needs, ensuring that power distribution systems remain reliable.

The Technical Superiority of the VS-3140—Setting It Apart from Basic Winding Resistance Tester Models

The VS-3140’s technical specifications are what make it a standout transformer winding resistance tester and winding resistance tester. It’s built to perform in the harsh, variable conditions of industrial and utility settings, delivering consistent precision where other tools fail.

Measurement Precision: Catching the Smallest Faults

The VS-3140 offers multiple current and resistance ranges tailored to high-capacity assets: 40A (covering 50μΩ–500mΩ), 20A (100μΩ–1Ω), and additional ranges for smaller but critical measurements. Its resolution is as fine as 0.0001μΩ— a level of detail that ensures even the tiniest resistance deviations (often the first sign of a fault) are detected. For example, when testing a 300,000kVA transformer, a 50μΩ increase in winding resistance could indicate a loose terminal—something a basic winding resistance meter might overlook, but the VS-3140 captures instantly. This precision is non-negotiable for high-capacity assets, where small faults can have big consequences.

Accuracy and Environmental Resilience: Reliable Results Anywhere

High-capacity electrical assets aren’t confined to climate-controlled labs—they’re in outdoor substations, dusty factories, and freezing power plants. The VS-3140 is built to withstand these conditions: with an accuracy class of 0.2, it delivers reliable results even when temperatures range from -10°C to 50°C. This environmental resilience sets it apart from delicate winding resistance meter models that drift in extreme temperatures or humidity. Whether you’re testing a transformer in a desert substation or a cable in a coastal facility, the VS-3140 ensures consistent data—critical for complying with industry regulations and making safe maintenance decisions.

Durability and Portability: Built for On-Site Work

Maintenance teams don’t test assets in labs—they go to the assets. The VS-3140 balances durability and portability: its rugged enclosure withstands industrial wear and tear (e.g., bumps during transport, dust in factories), while its manageable size and weight make it easy to load into a service vehicle. Unlike bulky, fixed winding resistance tester setups that stay in one location, the VS-3140 goes where it’s needed—whether that’s a remote power plant or a crowded factory floor. This mobility ensures that on-site testing is both precise and convenient, eliminating the need to move heavy assets to a lab.

The Competitive Advantage of the VS-3140—Why It’s an Essential Winding Resistance Tester

In a market flooded with testing tools, the VS-3140 stands out for three key reasons that make it indispensable for high-capacity asset maintenance:

1. Specialization for High-Capacity Assets—No Compromises

Generic winding resistance tester models force teams to compromise: they either underperform on large transformers or are too bulky for on-site use. The VS-3140 eliminates this trade-off: its focus on transformers below 400,000kVA, paired with robust motor and cable testing capabilities, makes it a single, versatile solution. You don’t need a separate transformer winding resistance tester for transformers and a winding resistance meter for motors— the VS-3140 handles it all, streamlining your toolkit and reducing equipment costs.

2. Precision You Can Trust—No Fault Overlooked

For high-capacity assets, “close enough” isn’t enough. A missed fault in a 400,000kVA transformer could lead to a power grid outage affecting thousands of homes. The VS-3140’s high resolution (0.0001μΩ) and accuracy class (0.2) ensure that even the smallest issues are caught, reducing the risk of equipment failure, downtime, and safety incidents. It’s the difference between reactive maintenance (fixing failures after they happen) and proactive maintenance (preventing them before they start).

3. User-Friendly Operation—Maximizing Efficiency

Maintenance teams are pressed for time, and complex testing tools slow them down. The VS-3140 is designed with usability in mind: it combines advanced features (high current ranges, environmental resilience) with an intuitive interface. Technicians can set up tests quickly, get results in minutes (faster than many basic winding resistance meter models), and move on to the next asset—maximizing productivity and minimizing the time high-capacity equipment is out of service.

Final Verdict: An Essential Investment for High-Capacity Electrical Maintenance

The VS-3140 Single Phase Transformer DC Resistance Tester isn’t just another winding resistance tester; it’s a strategic investment for businesses and professionals responsible for high-capacity electrical assets. As a dedicated transformer winding resistance tester, it delivers the precision needed for large transformers; as a versatile winding resistance tester, it protects motors and cables with equal reliability.

For teams that need to uphold the highest standards of equipment reliability, adhere to industry regulations, and ensure the seamless operation of critical infrastructure, the VS-3140 is the clear choice. It doesn’t just test high-capacity assets—it safeguards them, ensuring that the power systems that keep industries running stay safe, efficient, and resilient for years to come.
