Portable Single Phase Transformer DC Resistance Tester

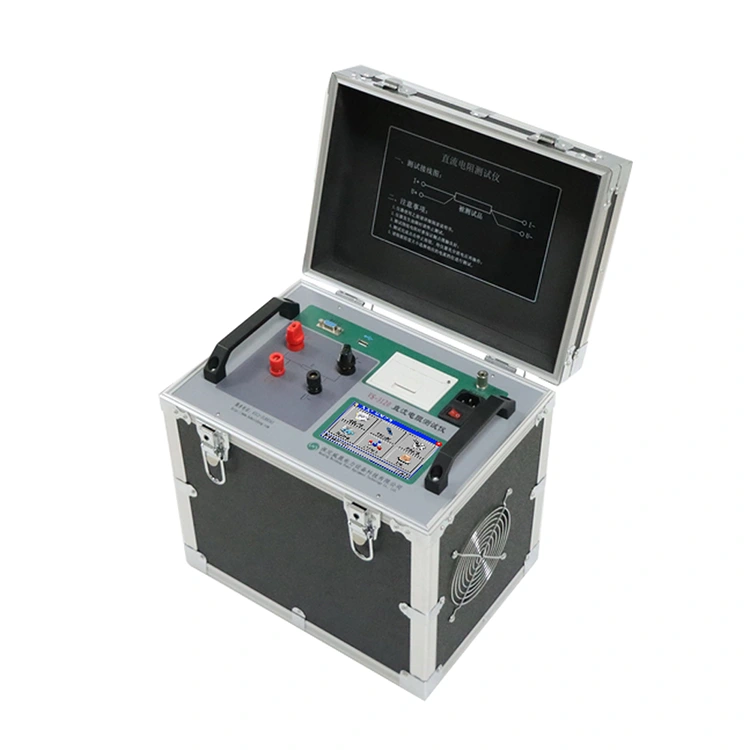

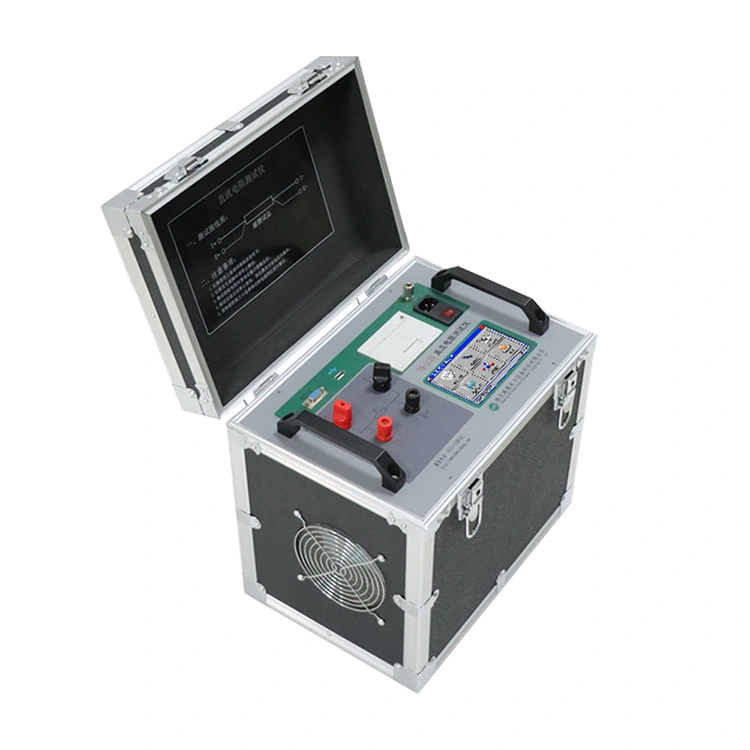

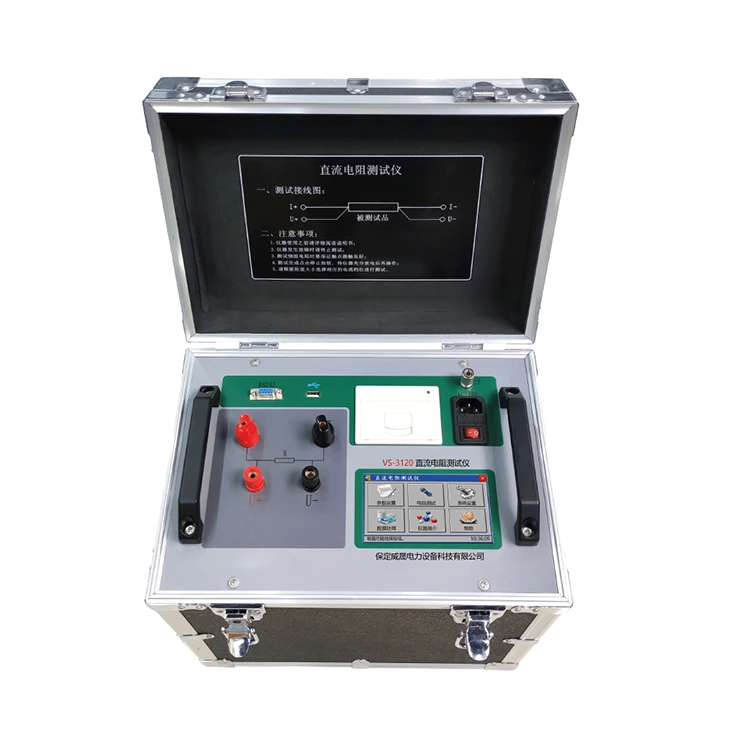

VS-3140 Portable Single Phase Transformer DC Resistance Tester: Precision Testing for High-Capacity Electrical Assets

In the domain of electrical equipment inspection and maintenance—where high-capacity transformers, motors, and cables are the backbone of power generation, transmission, and industrial operations—having a specialized winding resistance tester is non-negotiable. For electrical engineers, maintenance managers, and industry professionals seeking uncompromising precision, the VS-3140 Portable Single Phase Transformer DC Resistance Tester emerges as a game-changing solution. Unlike generic winding resistance meter models or basic transformer winding resistance tester units that struggle with large-scale assets, the VS-3140 is engineered specifically for high-capacity electrical equipment, delivering accuracy, efficiency, and reliability that align with the demands of critical power systems.

The Criticality of DC Resistance Testing for High-Capacity Assets—And Why the Right Winding Resistance Tester Matters

Portable Single Phase Transformer DC Resistance Tester is the first line of defense against catastrophic equipment failure, especially for high-capacity electrical assets where even minor faults can lead to costly downtime, safety hazards, or millions in replacement costs. For transformers— the workhorses of power grids—this testing uncovers latent issues: loose terminal connections, manufacturing defects in windings, or uneven turn counts that, if left undetected, could overheat during operation and cause irreparable damage. For large motors and extensive cable networks, it identifies performance-degrading faults like stator winding degradation or corroded conductors before they escalate into unplanned outages.

But not all winding resistance tester models are up to this task. Basic winding resistance meter units lack the precision to detect subtle resistance deviations in high-capacity assets, while generic transformer winding resistance tester tools often struggle with the voltage and current demands of large transformers (e.g., those above 100,000kVA). The VS-3140 solves this gap: it’s a specialized transformer winding resistance tester built to handle the unique challenges of high-capacity equipment, ensuring that no critical fault slips through the cracks—whether you’re testing a 400,000kVA transformer in a power plant or a mile-long industrial cable network.

VS-3140: Technical Design and Application Focus—A Transformer Winding Resistance Tester Tailored for Large-Scale Assets

The VS-3140 isn’t just a winding resistance tester; it’s a purpose-built tool optimized for the scenarios that matter most to high-capacity electrical systems. Its design and capabilities are laser-focused on solving the specific testing needs of transformers, motors, and cables that power industrial and utility operations.

Transformer Testing: Engineered for Large-Scale Assets (Up to 400,000kVA)

For power generation, transmission, and heavy industrial settings, transformers below 400,000kVA are the backbone of energy distribution—and the VS-3140 is the ideal transformer winding resistance tester for these assets. Unlike smaller winding resistance meter models that max out at low current ranges, the VS-3140 delivers the high current (up to 40A) needed to overcome the low resistance of large transformer windings, ensuring accurate readings. This precision lets users detect even the smallest issues: a 0.01Ω deviation in winding resistance could signal a loose connection, while uneven resistance across phases might indicate a turn-to-turn short. By catching these faults early, the VS-3140 extends the lifespan of high-value transformers, reduces maintenance costs, and prevents unplanned outages that disrupt entire power grids.

Motor and Cable Testing: A Versatile Winding Resistance Tester for Demanding Environments

While the VS-3140 shines as a transformer winding resistance tester, it’s also a versatile winding resistance tester for other high-capacity assets—large motors and industrial cables.

For large motors (e.g., those used in manufacturing plants or water treatment facilities), motor DC resistance testing is tied directly to capacity: the bigger the motor, the more critical it is to detect stator or rotor winding degradation early. The VS-3140’s measurement range supports accurate readings for these high-capacity motors, even when testing low-resistance windings that would overwhelm a basic winding resistance meter. By identifying subtle resistance increases (a sign of winding overheating or insulation breakdown), it helps maintenance teams schedule repairs before a motor fails mid-operation.

In cable testing, the VS-3140 accounts for the variables that impact resistance in large networks: length (e.g., mile-long transmission cables), voltage grade (e.g., 110kV industrial cables), and cross-sectional area. This is critical for identifying issues like corroded conductors (which increase resistance) or insulation breakdown (which can cause short circuits) in extensive cable systems. Unlike a generic winding resistance tester that provides one-size-fits-all readings, the VS-3140 adapts to these variables, ensuring reliable data that keeps power distribution systems running smoothly.

Technical Excellence of the VS-3140—Setting It Apart from Basic Winding Resistance Meter Models

The VS-3140’s technical capabilities are what make it a standout transformer winding resistance tester and winding resistance tester for high-capacity assets. It’s built to deliver industry-leading accuracy, resolution, and durability—even in the harshest operational environments.

Measurement Range & Resolution: Precision That Catches the Smallest Faults

Unlike entry-level winding resistance meter units with limited ranges, the VS-3140 offers multiple current and resistance combinations tailored to high-capacity assets: 40A (covering 50μΩ–500mΩ), 20A (100μΩ–1Ω), and additional ranges for smaller but still critical measurements. Its resolution is as fine as 0.0001μΩ— a level of precision that ensures even the tiniest resistance deviations (often indicative of early-stage faults) are detected. For example, when testing a 200,000kVA transformer’s winding, a 50μΩ increase in resistance could signal a loose terminal—something a basic winding resistance tester might miss, but the VS-3140 captures instantly.

Accuracy & Environmental Adaptability: Reliable Results Anywhere

High-capacity electrical assets aren’t just in climate-controlled labs—they’re in outdoor substations, dusty factories, and freezing power plants. The VS-3140 is built to perform in these conditions: with an accuracy class of 0.2, it guarantees reliable results even when temperatures range from -10°C to 50°C. This environmental adaptability sets it apart from delicate winding resistance meter models that drift in extreme temperatures. Whether you’re testing a transformer in a desert substation or a cable network in a coastal plant, the VS-3140 delivers consistent, trustworthy data—critical for complying with industry regulations and making safe maintenance decisions.

Build & Portability: Durability Without Sacrificing Mobility

While high-capacity testing requires a robust tool, portability still matters—maintenance teams often need to move transformer winding resistance tester units between job sites. The VS-3140 balances durability and mobility: its rugged enclosure withstands industrial wear and tear (e.g., bumps during transport, dust in factories), while its manageable size and weight make it easy to load into a service vehicle. Unlike bulky, fixed winding resistance tester setups that stay in labs, the VS-3140 goes where the assets are—ensuring on-site testing that’s both precise and convenient.

Why the VS-3140 is Indispensable for High-Capacity Electrical Testing

In an industry where equipment reliability and safety are paramount, the VS-3140 offers three distinct advantages that make it a must-have transformer winding resistance tester and winding resistance tester:

1. Specialization for High-Capacity Assets—No More Compromises

Generic winding resistance tester models force teams to compromise: they either underperform on large transformers or are too bulky for on-site use. The VS-3140 eliminates this trade-off: its optimization for transformers below 400,000kVA, coupled with robust motor and cable testing capabilities, makes it a single, versatile solution for diverse high-capacity needs. You don’t need a separate transformer winding resistance tester for large transformers and a winding resistance meter for motors— the VS-3140 does it all, streamlining your toolkit and reducing equipment costs.

2. Uncompromising Precision—No Fault Goes Undetected

For high-capacity assets, “close enough” isn’t enough. A missed fault in a 300,000kVA transformer could lead to a power grid outage affecting thousands of homes or businesses. The VS-3140’s high resolution (0.0001μΩ) and accuracy class (0.2) ensure that even the smallest resistance deviations are caught—reducing the risk of equipment failure, costly downtime, and safety incidents. It’s the difference between reactive maintenance (fixing failures after they happen) and proactive maintenance (preventing failures before they start).

3. Efficiency in Operation—Maximize Productivity, Minimize Downtime

Maintenance teams are always pressed for time, and high-capacity testing can’t drag on for hours. The VS-3140 is designed with efficiency in mind: it combines advanced functionality (e.g., high current ranges, environmental adaptability) with user-friendly operation. Technicians can set up tests quickly, get results in minutes (faster than many basic winding resistance meter models), and move on to the next asset—maximizing productivity and minimizing the time high-capacity equipment is out of service.

Final Verdict: A Strategic Investment for High-Capacity Electrical Systems

The VS-3140 Single Phase Transformer DC Resistance Tester isn’t just another winding resistance tester; it’s a strategic investment for businesses and professionals tasked with maintaining high-capacity electrical assets. As a specialized transformer winding resistance tester, it delivers the precision needed for large transformers; as a versatile winding resistance tester, it handles motors and cables with equal reliability.

For teams that need to uphold the highest standards of equipment reliability, comply with industry regulations, and ensure the uninterrupted operation of critical electrical systems, the VS-3140 is the clear choice. It doesn’t just test high-capacity assets—it protects them, ensuring that the power systems that keep industries running stay safe, efficient, and resilient.
