VLF Test Set

VLF hipot tester for Weshine® VLF Test Set with CE certificate, high quality and accrucy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more VLF hipot tester from Weshine!

Send Inquiry    PDF DownLoad

Product Description





Weshine® Pour point automatic tester for VLF Test Set

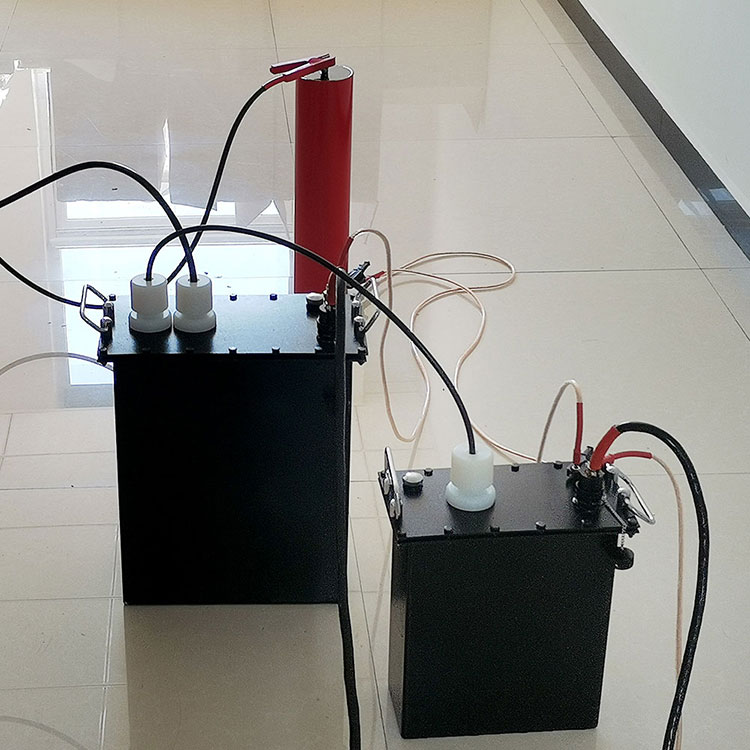

Weshine® VLF Test Set is a compact, robust and portable VLF sine wave test system for medium voltage cables. As an ideal tool for routine cable testing. For 0.1Hz sine wave voltage test and rectangular or DC voltage test, the test kit meets the highest requirements for test voltage quality and stability. In addition, the integrated "breakdown detection" will turn off the test voltage in the event of excessive charging current and ensure limited damage to the cable. Consistent single-button operation combined with complex operating concepts allows rapid and targeted use of the system.

Since the VLF test provides an operating frequency of 0.1Hz instead of the 50/60Hz usually required for field transmission, the physical size of the VLF test device is greatly reduced. Crucially, the test object still receives the AC sinusoidal voltage provided by daily use, but the size of the test equipment is much smaller.



PRODUCT INFORMATION

Product Name

VLF HIPOT TESTER  FOR  VLF Test Set

Model Number

VS-VLF

Output Frequency

0.1 Hz, 0.05 Hz, 0.02 Hz

Output Voltage

30 kV ~ 90 kV

High Test Capacity

5.5 μF

Protection Function

Over-voltage Protection, Over-current Protection.

Typical Application

Power Cables Below 35 kV; Generators Hipot Test.

Certificates

CE; EMC; LVD; ISO;

Weight

4+25 kg



Weshine® VLF Test Set Parameter (Specification)




Quality Certificates


We always believe that all the success of our company is directly related to the quality of the products we provide. VLF Test Set meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
