Tan Delta Test of Transformer
  • Tan Delta Test of TransformerTan Delta Test of Transformer
  • Tan Delta Test of TransformerTan Delta Test of Transformer

Tan Delta Test of Transformer

Transformer automatic anti-interference precision dielectric loss tester for Weshine® Tan Delta Test of Transformer with CE certificate, high quality and accrucy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Winding Resistance Test of Transformer from Weshine!

Send Inquiry    PDF DownLoad

Product Description

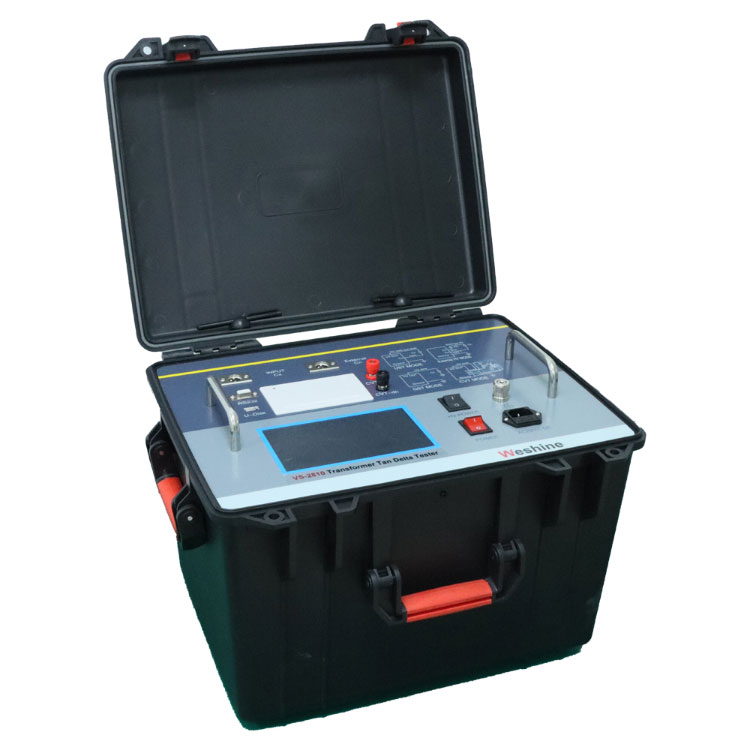

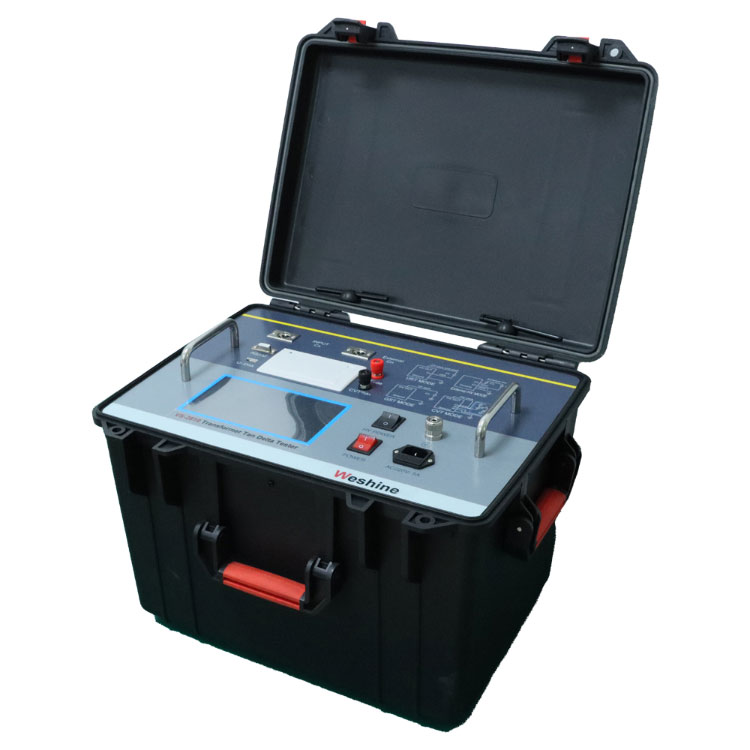

Transformer automatic anti-interference precision dielectric loss tester for Tan Delta Test of Transformer


Tan Delta Test of Transformer breaks through the traditional bridge measurement method, adopts variable frequency power supply technology, uses single chip microcomputer, and modern electronic technology to perform automatic frequency conversion, analog/digital conversion and data calculation; it achieves strong anti-interference ability and fast test speed. , High precision, automatic digitization, easy operation; the power supply adopts high-power switching power supply, output 45Hz and 55Hz pure sine wave, automatic pressurization, can provide a voltage of up to 10 kV; automatically filter out 50Hz interference, suitable for electromagnetic fields such as substations Intrusive field tests. It is widely used in the dielectric loss measurement of transformers, mutual inductors, bushings, capacitors, arresters and other equipment in the power industry.


Weshine® Tan Delta Test of Transformer Parameter (Specification)


PRODUCT INFORMATION

Product Name

TRANSFORMER DIELECTRIC LOSS TESTER FOR Tan Delta Test of Transformer

Test Current Range

10μA~1A

Accuracy of Cx

±(rdg*1%+1pF)

Power Supply

AC220V

Measuring time

About 40s

Accuracy of tan delta

±(rdg*1%+0.00040)

Certificates

CE; EMC; LVD; ISO; IEC;

Dimensions

460*360*350mm

Model Number

VS-2810


Quality Certificates


We always believe that all the success of our company is directly related to the quality of the products we provide. Tan Delta Test of Transformer meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
