Partial Discharge Detector
  • Partial Discharge DetectorPartial Discharge Detector
  • Partial Discharge DetectorPartial Discharge Detector
  • Partial Discharge DetectorPartial Discharge Detector
  • Partial Discharge DetectorPartial Discharge Detector
  • Partial Discharge DetectorPartial Discharge Detector
  • Partial Discharge DetectorPartial Discharge Detector

Partial Discharge Detector

Weshine® is New Brand and Fast rising in the Electric Area.Relying on High-Quality product and Efficient after-sales service to win the trust of the customers.Weshine is your trusted manufacturer and supplier in China.Our Partial Discharge Detector Equipment is mainly test the various relays and microcomputer protection, the Partial Discharge Detector can simulate various complex transient, permanent and transformable faults to conduct a whole group of tests.The Partial Discharge Detector can test the current,voltage,inverse time,power direction,impedance,differential,low cycle,synchronous,frequency,DC,intermediate,time etc. The after-sales service of The Partial Discharge Detector is Excellent.Looking forward to have a good and long partnership with you.

Send Inquiry    PDF DownLoad

Product Description

Weshine® is New Brand and Fast rising in the Electric Area.Relying on High-Quality product and Efficient after-sales service to win the trust of the customers.Weshine is your trusted manufacturer and supplier in China. Weshine® Partial Discharge Detector Equipment is mainly test the various relays and microcomputer protection, the Partial Discharge Detector can simulate various complex transient, permanent and transformable faults to conduct a whole group of tests.The Partial Discharge Detector can test the current,voltage,inverse time,power direction,impedance,differential,low cycle,synchronous,frequency,DC,intermediate,time etc. The after-sales service of The Partial Discharge Detector is Excellent.Looking forward to have a good and long partnership with you.


Model No.1



Partial Discharge Detector


VSPD-2000



Product Introduction:



Weshine Partial Discharge Detector is simple and easy to use,Partial Discharge Detector is very suitable for daily inspection of equipment points to grasp the operation status of electrical equipment in real time.Partial Discharge Detector can also detects faults which cannot be detected with thermal imaging cameras. Such as corona and early tracking and so on.



Product Parameter:


System

WINCE6.0

CPU

Main frequency of 533MHz

Memory

RAM of 256MB DDR2,1GB NandFlash

Screen

TFT true color touch screen of 4.3”,resolution of 480 * 272

SD memory card

TF card of more than 8G

Camera

3 mega-pixel high definition camera

Accessories

GPS,temperature /humidity measurement device,high brightness laser pointer

Storage function

GPS coordinate,time/date,temperature/humidity

Frequency range

20—150kHz

Sensor

40kHz x 1Ea

Working condition

.-25℃~ 70℃

Relative humidity

0 - 95%

Charger specification

Input:100-240V,50/60Hz
Output:voltage of 20V, current of 3.25A

Power supply

Battery power:lithium battery
Working hours:about 8 hours
    Battery protection:LCD backlight will go dark, when there
is no operation within 5 minutes. The instrument will
automatically shutdown, when there is no operation within 20 minutes. When the battery power is less than 5%, system will beep hinting users to save data timely, then users need power it off and recharge.




Product Feature:


Partial Discharge Detector is simple and easy to use,Partial Discharge Detector is very suitable for daily inspection of equipment points to grasp the operation status of electrical equipment in real time.Partial Discharge Detector can also detects faults which cannot be detected with thermal imaging cameras. When the local discharge occurs inside the equipment,it cannot be detected by infrared methods,but the Partial Discharge Detector can be used to detect the surface or joints surface of electrical equipment.



Product details:

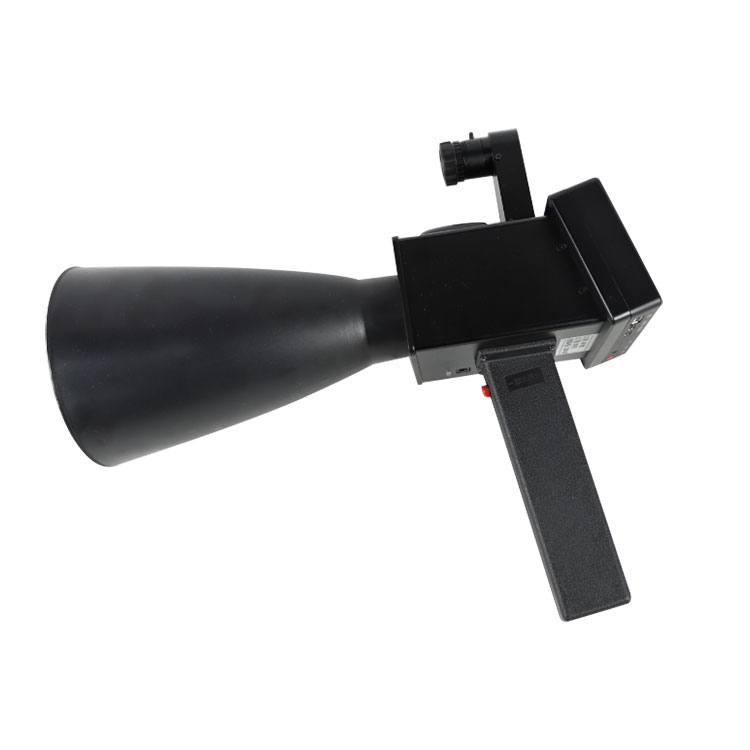

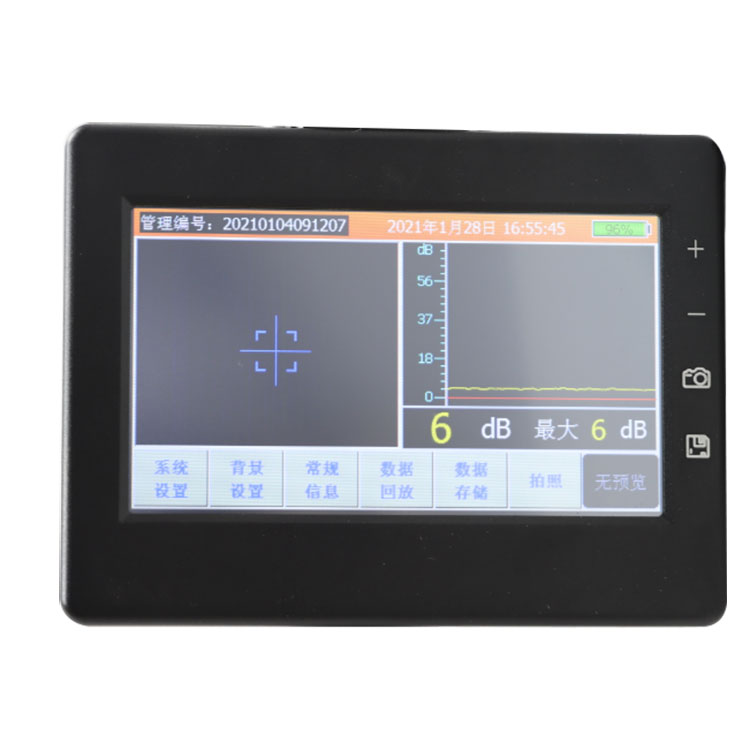

Partial Discharge Detector can accurately locate the place to inspect. The Partial Discharge Detector will receive ultrasonic signal (whose  frequency ranges from 35 to 45kHz ) in the air through the ultrasonic sensor and electrical circuits, and convert the received ultrasonic audio signal and oscillogram to audible sound and visual waveform file. The screen is color touchscreen, which can display information such as waveform, dB values, temperature, humidity and GPS.


Model No.2



Partial Discharge Detector


VS-9104



Product Introduction:

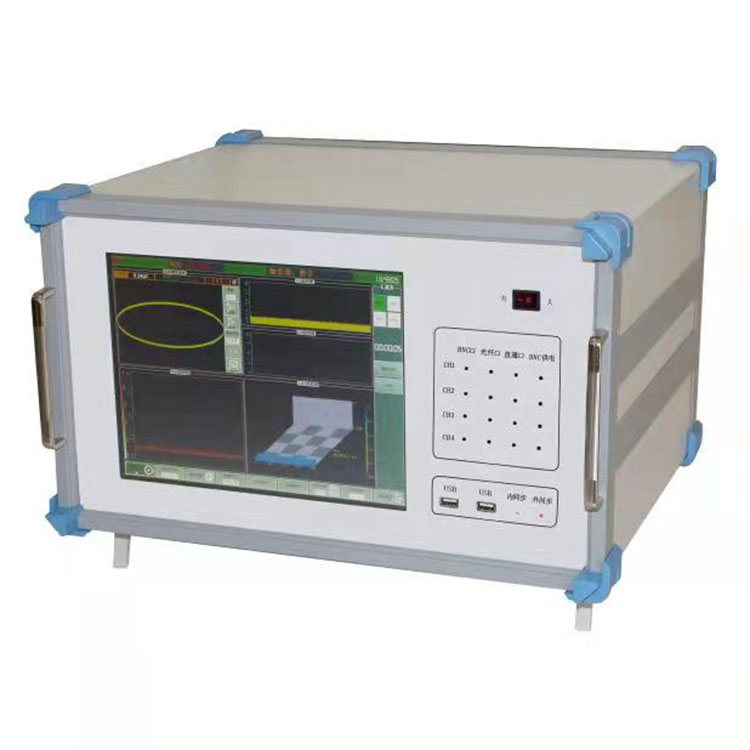

Weshine Partial Discharge Detector is using Windows System operation platform,The Partial Discharge Detector shows ellipse,straight line,sine wave display,two-dimensional,three dimensional graphic analysis mode and spectrum window.The Partial Discharge Detector is Q-V-F Characteristic window,The Partial Discharge Detector can statically measure,observe and analyze the partial discharge pulse of one cycle test voltage in details.



Product Parameter:


Number of Interfaces

Free-running 4 interfaces

Sampling rate

1M. 5M. 10M selected

Sampling Accuracy

12bit

Range changing

-40dB, -20dB, 0dB, 20dB, 40dB ,60dB, totally 6 types

Measurement frequency range

3db bandwidth 10kHz~1MHz

Digital filtering

10kHz~1MHz freely selected

CPU

Basic frequency 1.60GHz

Ram

2.0GB

Hard disk

128GB SSD

System

Windows Xp



Product Feature:


Partial Discharge Detector is the dedicated product to measure and analyze the insulation ability of electrical equipment. The Partial Discharge Detector system adopts modern electronic and computer integrated technology with the functions of signal amplification,filtration ,data sampling,data processing,test report generation automatically.The Partial Discharge Detector can finish the measurement,location and analysis.



Product details:


The Partial Discharge Detector is a new generation digital analyzer with high performance and new technique. The Partial Discharge Detector is a desktop with advantage of multi-interface. The Partial Discharge Detector has TFT LCD display,the data can be seen very clearly.



Model No.3



Partial Discharge Detector


VS-9209



Product Introduction:



Weshine Partial Discharge Detector VS-9209 is equipped with transient ground wave and ultrasonic measurement methods.Partial Discharge Detector high frequency current measurement methods can be selected according to demand.The Partial Discharge Detector will produce a series of physical phenomena and chemical changes.



Product Parameter:


Number of Interfaces

Free-running 4 interfaces

Way of synchronization

Internal synchronization,External synchronization,

Light synchronization

Sampling Accuracy

12bit

Measurement frequency range

3M-100MHz

Maximum pulses per cycle

720

Output interface

Standard SMA connected host



Product Feature:


Partial Discharge Detector is multifunctional handheld instrument.The Partial Discharge Detector based on the detection methods of ground wave,ultrasonic,UHF and high-frequency current to test the partial discharge of the equipment.The Partial Discharge Detector provides the storage and readout functions of two-dimensional and three-dimensional maps.The Partial Discharge Detector can better evaluate the partial discharge of electrical equipment.

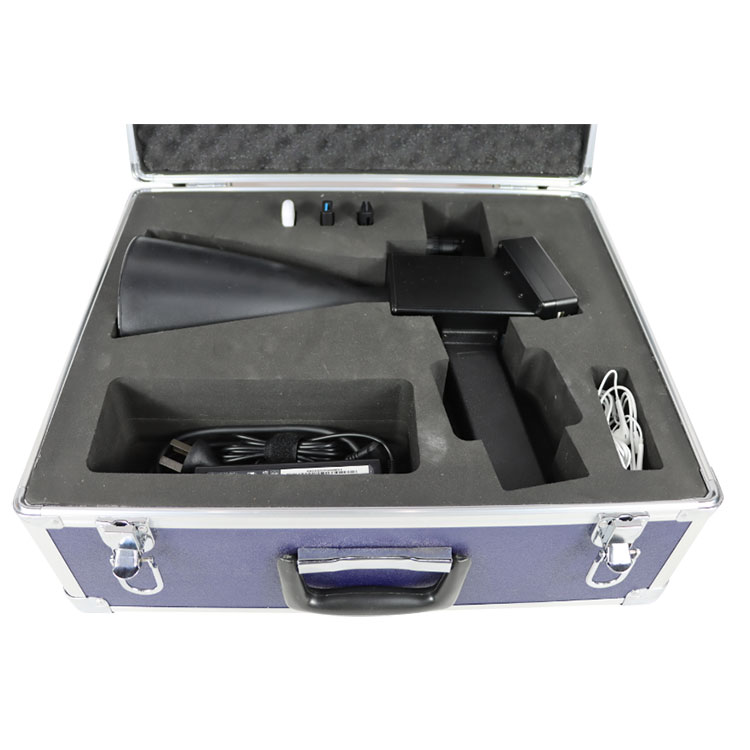

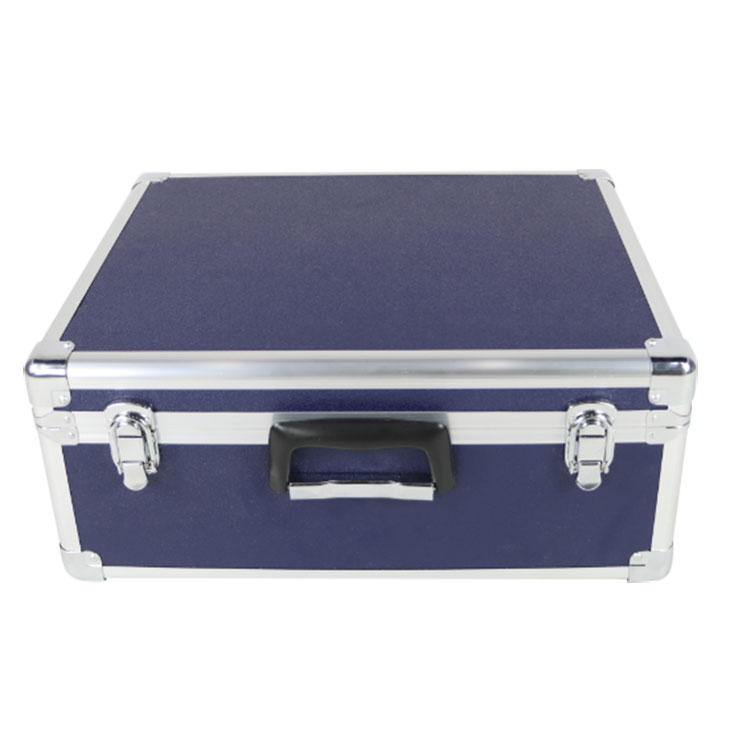

Packing Details:






Contact us


FEEL FREE TO MAKE A PHONE CALL:400 996 1868

OR E-MAIL TO: info@weishengelectric.com

SALES OFFICE

Weshine Limited 602, Building 3, Diangu

Technology Center, No. 3088, Lekai North Street

W/app: +86 1873 1260 588

E. info@weishengelectric.com

sale01@weishengelectric.com


CONTACT OFFICE

T. 0312 3188565

E. bdweisheng@weishengelectric.com


AFTER-SALES SERVICE

T. +86 157 1252 6062


Hot Tags: Partial Discharge Detector, Buy, China, Manufacturers, Suppliers, Factory, Price, Purpose, Specification, Results, Definition
