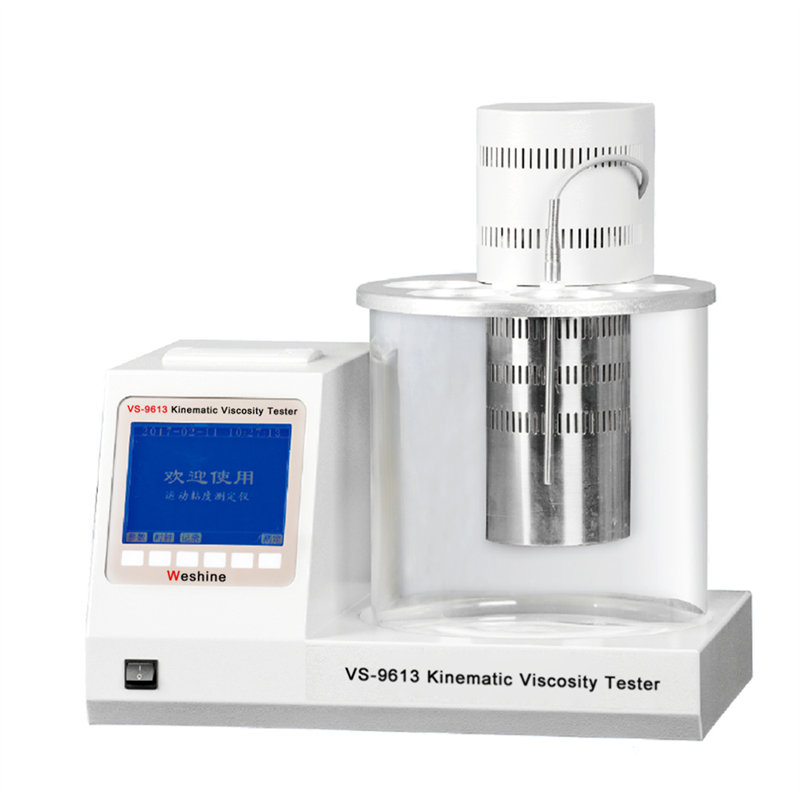

Kinematic Viscosity Meter

Kinematic Viscosity Meter is a special test instrument designed and manufactured according to the national standard "GB/T265-88 Determination of Kinematic Viscosity of Petroleum Products", which is suitable for measuring the kinematic viscosity of liquid petroleum products. The instrument has timing sample movement time and automatically calculates the final result of kinematic viscosity. This method is suitable for the determination of the kinematic viscosity of liquid petroleum products (referring to Newtonian liquids). The product of the constant and the flow time is the kinematic viscosity of the liquid at this temperature.

Send Inquiry

Product Description

Kinematic Viscosity Meter is a special test instrument designed and manufactured according to the national standard "GB/T265-88 Determination of Kinematic Viscosity of Petroleum Products", which is suitable for measuring the kinematic viscosity of liquid petroleum products. The instrument has timing sample movement time and automatically calculates the final result of kinematic viscosity. This method is suitable for the determination of the kinematic viscosity of liquid petroleum products (referring to Newtonian liquids). The product of the constant and the flow time is the kinematic viscosity of the liquid at this temperature.

Widely used in petroleum, chemical, oil field, railway, scientific research, measurement and other departments. The test results of the instrument have high precision, good repeatability and reproducibility, and are simple and convenient to operate.


Kinematic Viscosity Meter

Automatic kinematic viscosity checks at a competitive price

Temperature range from 15 °C to 100 °C

Digital data handling: no stopwatch or manual calculations

Operator time per measurement: 5 min; only 1.5 mL of sample

Integrated ASTM bias correction for D445 results .


Description

Kinematic Viscosity Meter, in line with GB265-88, G1814, ASTM D445, IP71 and other standards, using advanced single-chip control, large color LCD screen in Chinese and English, operation prompts, high-speed thermal printer, with automatic storage and automatic printing of test results, constant temperature The temperature of the bathtub is even. Four viscometers can be installed at the same time for oil viscosity test, and also can be equipped with high viscosity constant temperature water bath for other tests.

Performance Standards

GB265-88, GB1814,ASTM D445,IP71, etc.

Capillary Viscometer

Conform to SH/T0173-92 Technical Conditions of Glass Capillary Viscometer, Conform to JJG155 Verification Regulation of Routine Capillary Viscometer

Method of Display

7 inch color LCD

Temperature Control Range

-60—99℃

Testing Range

Kinematic Viscosity:0.5~20000mm2/s, Kinetic Viscosity:0.3~40000mPa.s

Temperature Control Accuracy

±0.1℃

Timing Accuracy

±0.1S

Timing Range

0.1S-999.9S

Homoeothermic Bathtub

300×300mm double layer

Printer

Thermal printer, high-speed and lower consumption, with 55 millimeter-wide printing paper

Temperature Testing Components

Precise imported platinum electric resistance

Stirring Speed

1520Rounds/Min

Heating power

800W

Sample Installing Quantities

4 pieces

Working Environment

Temperature: 0℃~40℃  Relative Humidity:<80%

Power Supply

AC220V±10% 50Hz

Dimension(largest)

560*370*520(L*W*H)

Weight

13Kg


Advantages

Advanced single chip control; intelligent temperature control; large color LCD screen with operation prompt menu.

Unique and advanced modular technology can detect high viscosity and low viscosity oil at the same time.

Timing indication of working status, including temperature, time, parameters, etc.

Equipped with a constant temperature bathtub and a plexiglass incubator outside, the temperature in the bathtub is uniform and the temperature control is effective.

Stainless steel heater and components, anti-corrosion and durable, ring fluorescent lighting, easy to observe.

Automatically calculate the kinematic viscosity value and the average value of the test results, print and memorize the results.

Accurate test, intuitive display, automatic timing, automatic calculation, automatic printing results and other advantages.
