Weshine® Gas Chromatography System




Product Introduction:

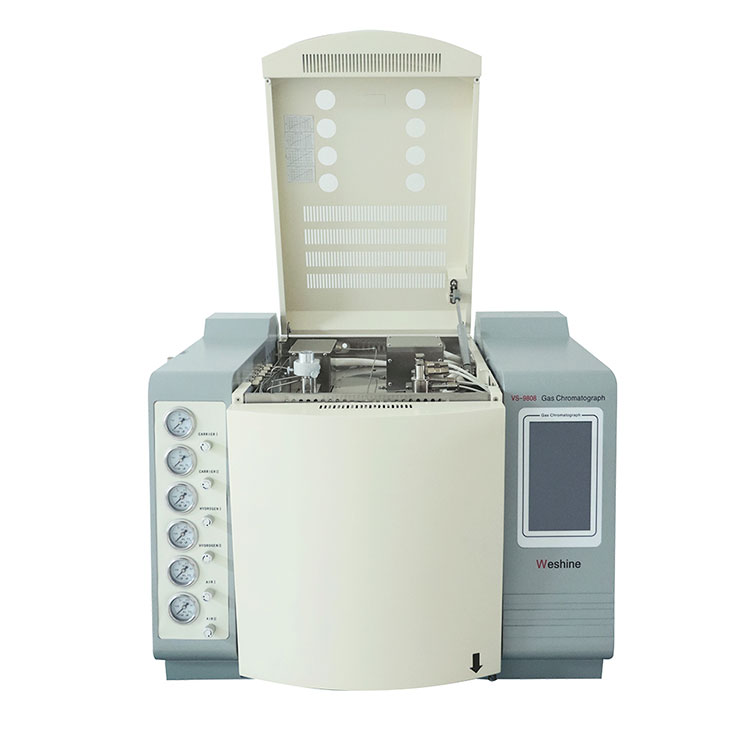

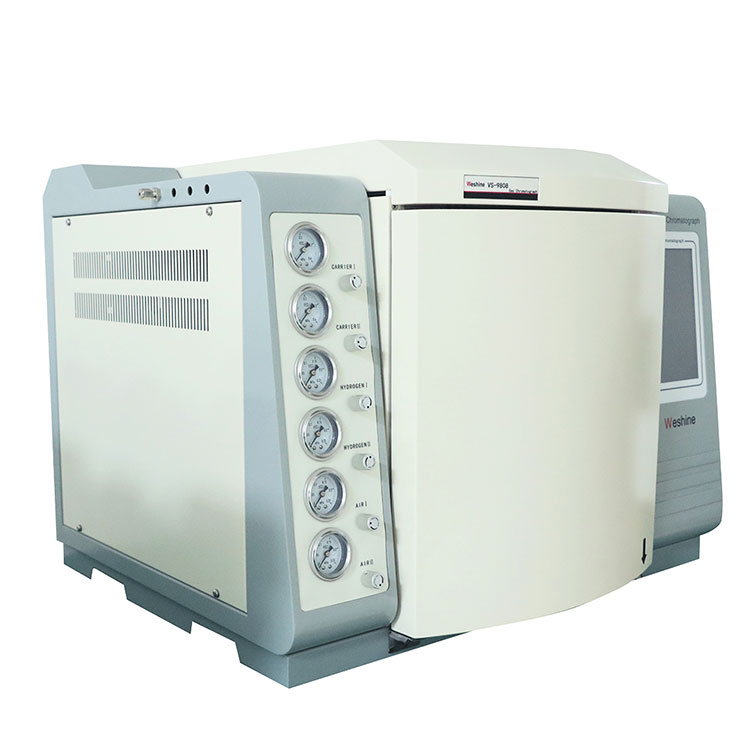

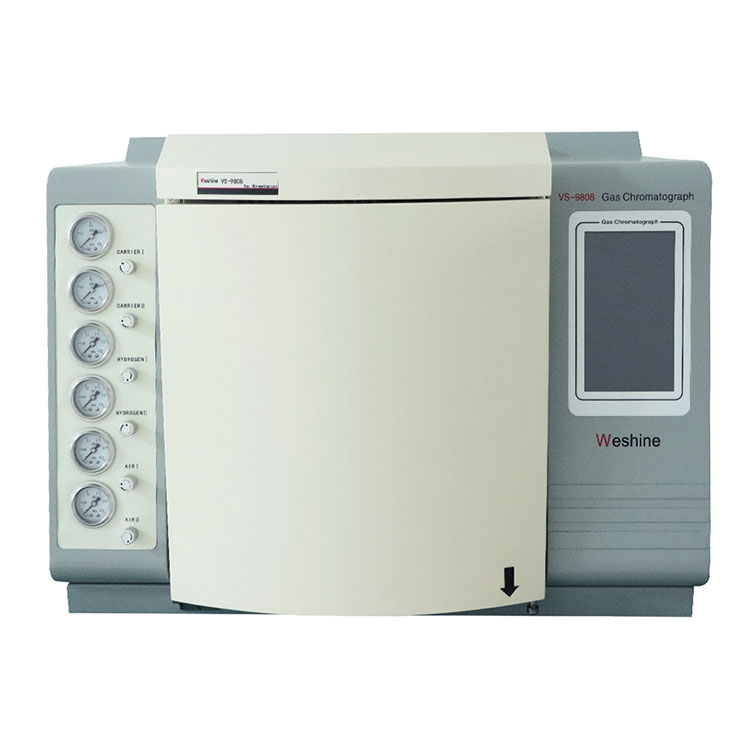

Weshine® VS-9808 Gas Chromatography System specializes in the analysis of gases in transformer insulating oil. The Gas Chromatography System can analyze 7/9/11 kinds of gas components in the insulating oil through two or three chromatographic columns.If there are many oil samples needed to be tested, then the Headspace Autosampler can help to extract the gases from the oil for the Gas Chromatography System . 27/72 Samples can be shocked and heated,and then transmit the gases automatically by the Autosampler. It can help the Gas Chromatography System a lot,and save labor cost and time cost.The software of the Gas Chromatography System is easy to operate,we can provide online video guidance and remote assistance.Please enjoy our 7days*24hours after-sales service.



Product Parameter:



Operating display

192*64 periodic lattice liquid crystal

Temperature control area

6 ways

Temperature

5℃~ 400℃

Programming

Rate 0.1 ~ 39℃/min

External events

4 ways

Detector

FID, TCD,ECD, FPD and NPD

Communication interface

Ethernet: IEEE802.3





Product Feature:



Gas Chromatography System mainly analysis the gases components from the transformer insulating oil.Gas Chromatography System works with the Air Generator,Hydrogen Generator, and Oscillator.

The Oscillator shocks and heats up the oil sample to get the gas from the oil. And then inject the gas sample into the Gas Chromatography System. Before that,we should use the Air Generator and Hydrogen Generator to fire the FID1 and FID2.The Gas Chromatography System will analysis the gas sample automatically, and you will see the gases components waves on the software on PC.The test report can be printed by the printer from the Gas Chromatography System.



Product details:



For Headspace Sampler:

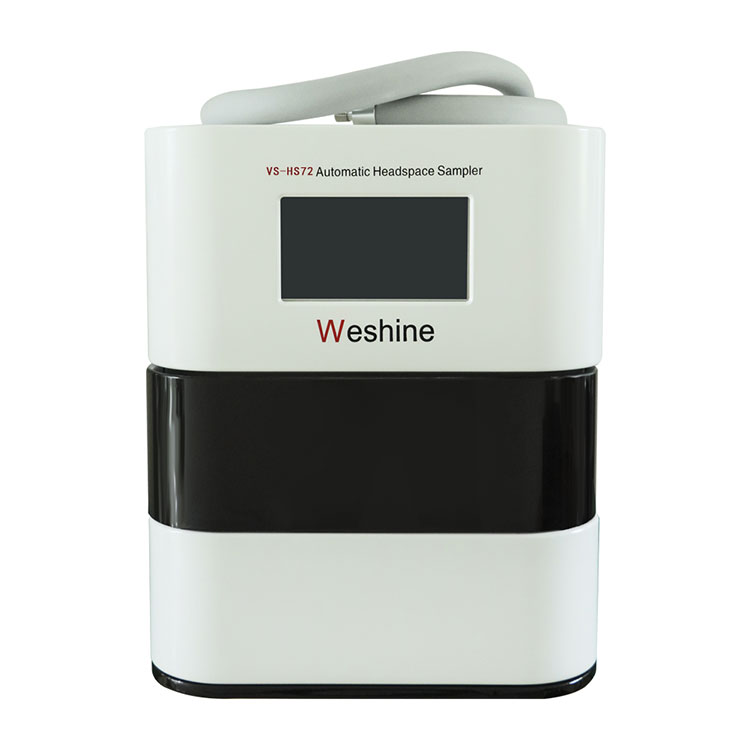

The Autosampler can extracts the gases from the insulating oils, and transmit the gases by carrier gas to the Gas Chromatography System Columns.It has the function of the heating and shocking,instead of the manual oscillator.



Details of the Vials



Number of vials

27/72

Vial Material

Neutral Glass

Vial volume

20ml

Vial Septum

PTFE coated with butene rubber

PTFE coated with silicone rubber

Vial Aluminum Cap

Aluminum





For Oscillator:

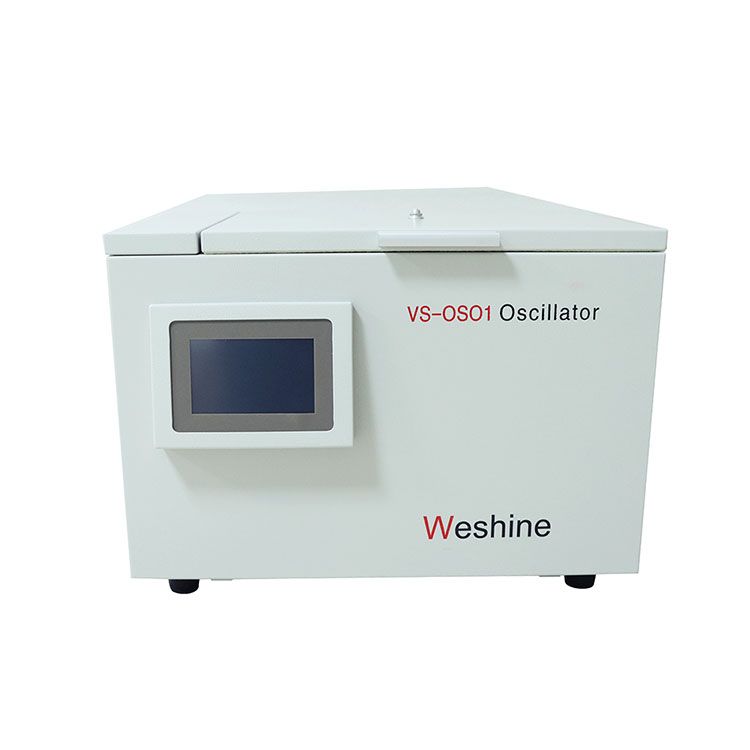

The Oscillator heats and shocks the transformer oil to extract the gases from the transformer insulating oils automatically. The temperature and times can be set. Put the 40ml oils into the 100ml-injector, and then put 8 injectors at max into the oscillator to start the extraction works.





For Hydrogen Generator:

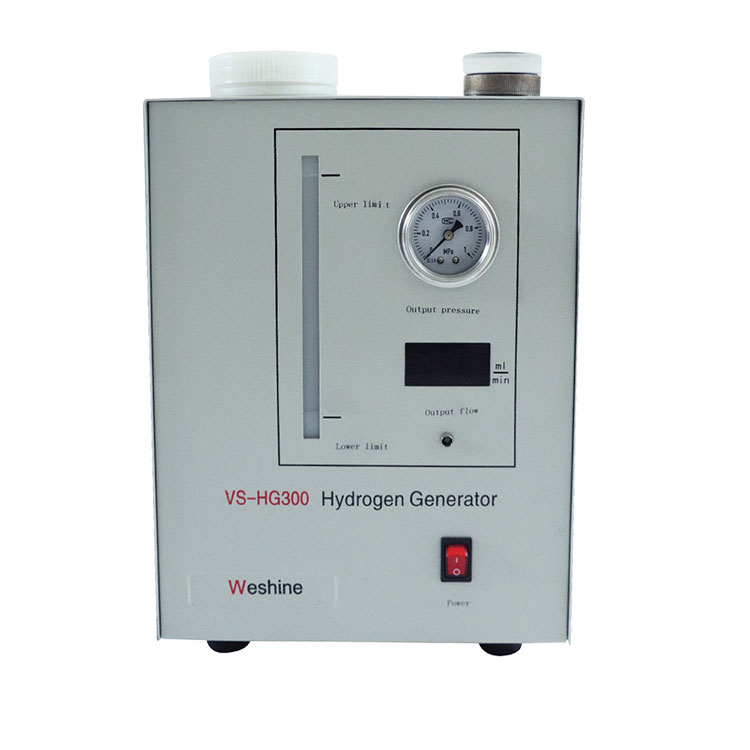

This Hydrogen Generator make the hydrogen for the Gas Chromatography System, the hydrogen can help to fire the FID1 and FID2.


For the Air Generator:





The Air Generator provides the air for the Gas Chromatography System to help the Hydrogen firing.
