Furan Analysis of Transformer Oil
  • Furan Analysis of Transformer OilFuran Analysis of Transformer Oil
  • Furan Analysis of Transformer OilFuran Analysis of Transformer Oil
  • Furan Analysis of Transformer OilFuran Analysis of Transformer Oil

Furan Analysis of Transformer Oil

Weshine® is New Brand and Fast rising in the Electric Area.Relying on High-Quality product and Efficient after-sales service to win the trust of the customers.Weshine is your trusted manufacturer and supplier in China.Our Furan Analysis Of Transformer Oil can help you to do the Furan Components of the transformer insulating oil works very well,especially the after-sales service is Excellent.Looking forward to have a good and long partnership with you.

Send Inquiry    PDF DownLoad

Product Description

Weshine® Furan Analysis Of Transformer Oil



Product Introduction:

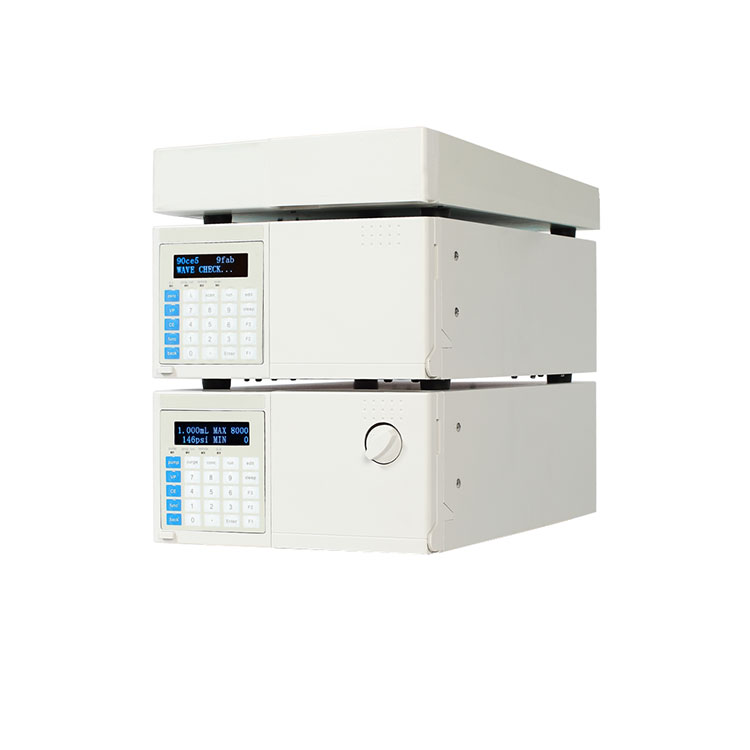

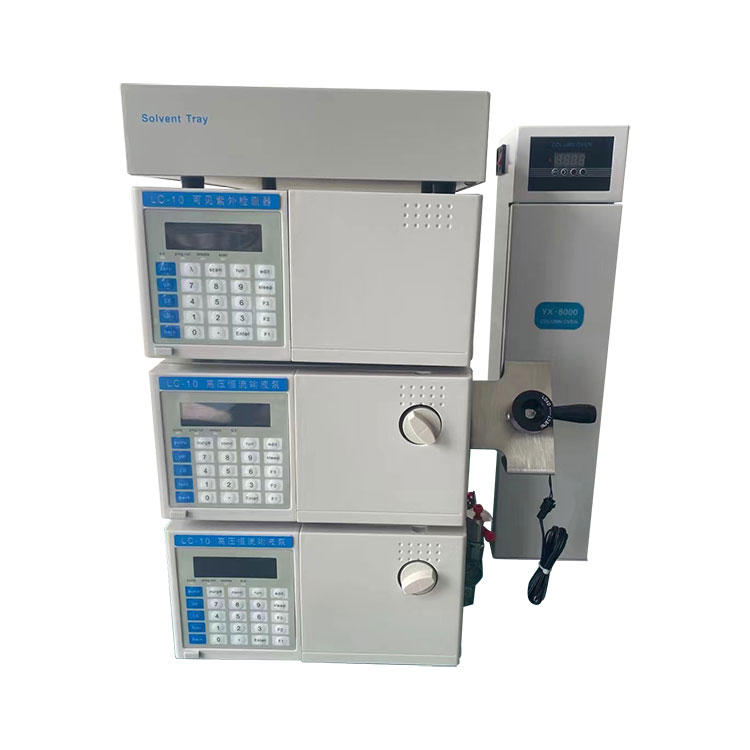

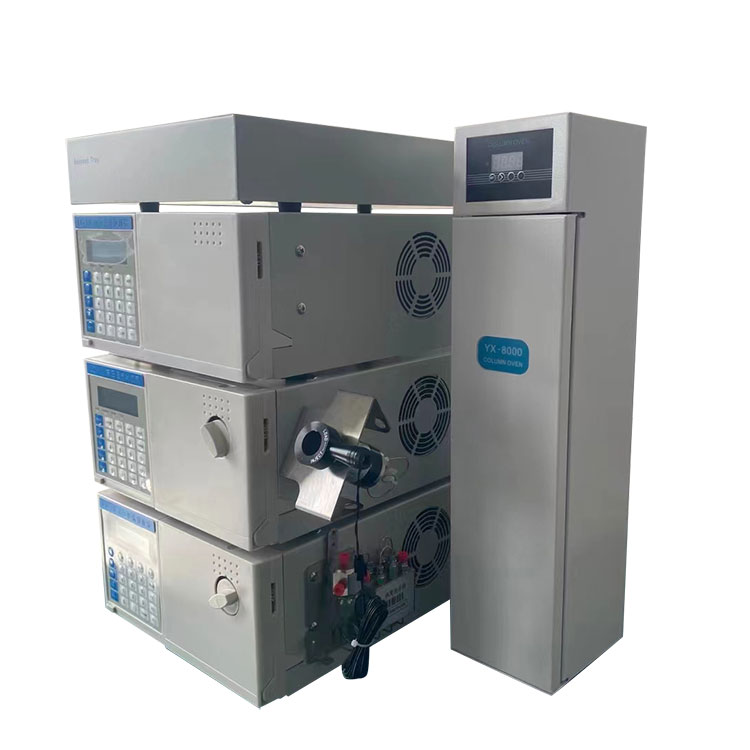

Weshine® VS-HPLC980 Furan Analysis Of Transformer Oil is a professional detector for measuring furan components in transformer oil.The detection of furan components in transformer oil is carried out by high performance liquid chromatography HPLC.The software of the Furan Analysis Of Transformer Oil is easy to operate,we can provide online video guidance and remote assistance.Please enjoy our 7days*24hours after-sales service.



Product Parameter:



One Set High Pressure Constant Flow Infution Pump

Infusion method: micro-volume series double plunger

Power Supply

220V/50HZ

Manual injection valve

One Set

Wavelength Setting

190-700

Colum

C18

Detector

UV/Vis detector

Loop Cycle Setting

0-255

Liquid Autosampler

Optional





Product Feature:

Furan Analysis Of Transformer Oil can analysis the furan components of the transformer oil. The Furan Analysis Of Transformer Oil use the visible UV detector,the measurement accuracy is high.The Furan Analysis Of Transformer Oil is equipped with a high-pressure infusion pump, which can effectively control the flow rate.The Furan Analysis Of Transformer Oil can be equipped with two pumps at the same time, one for water and one for Methanol.The Furan Analysis Of Transformer Oil can also be used with liquid autosamplers. Our autosamplers are 200-position, easy and quick to use.



Product details:



The Furan Analysis Of Transformer Oil can not only detect furan components in transformer oil well,but also can detect other liquid with different column. Its usage wide

and efficient.Through the determination of the standard solution, we are well able to calibrate the instrument.





Automatic Liquid Sampler



Specifications: This instrument is an efficient and intelligent liquid-phase autosampler, which can be used in conjunction with liquid chromatography, liquid mass spectrometry, ion chromatography and other detection instruments. It can automatically complete actions such as pipeline cleaning, bubble emptying, sample injection, and post-injection cleaning, which effectively improves work efficiency. The device is equipped with special operating software, which is convenient and fast.


Syringe Specifications

100, 250, 500, 1000 (unit:μL) Standard 250μL

greatest pressure

45MPa

Number of sample trays

200

Vial size

2mL

Number of injections per row

1 to 99 times

maximum time interval

999 points

Injection volume

0.1 to 1000μL

Maximum supported inlets

1

Maximum cleaning solvent

2 kinds

Number of cleaning pools

2

Clean Syringe Mode

Solvent A, Solvent B, Solvent A+B

Purge Line Mode

Before injection, after injection, before and after injection

Temperature control range

4~40℃±0.5℃

Pump mode

capacity, time

pump speed

slow, medium, fast

Extraction speed

slow, medium, fast

Injection method

Fully quantitative, semi-quantitative, non-destructive

Loop Specifications

Standard 20μL, other specifications are optional

control method

Interval automatic control, signal reverse control, PC control

repeatability

Full quantitative: RSD <0.3%

Semi-quantitative: (when injection volume > 10μL) RSD < 0.5%

Semi-quantitative: (injection volume > 1μL) RSD < 1%

No loss: (injection volume > 10μL) RSD < 0.5%

No loss: (when injection volume > 1μL) RSD < 1%

net weight

Standard about 21㎏About 22㎏with cooling module

Net size

500*343*327(L*W*H)mm

Maximum power

200W

power supply

AC220V, 50HZ





Packing:
