Dielectric Withstand Test1
  • Dielectric Withstand Test1Dielectric Withstand Test1
  • Dielectric Withstand Test1Dielectric Withstand Test1
  • Dielectric Withstand Test1Dielectric Withstand Test1

Dielectric Withstand Test1

Weshine® invented the VS-9900 series of Hipot Tester for dielectric withstand test has been built to provide a cost effective, yet powerful solution to dielectric withstand test, whether on a production line or in a laboratory environment for compliance testing purposes. With the ability to perform either 5kV AC or 6kV DC dielectric strength tests and up to 500VA AC power output Weshine® VS-9900 series can aid testing to many international safety standards including IEC, EN, UL and CSA to name but a few. With many features, Weshine® Hipot Tester for dielectric withstand test series ensures testing is performed accurately, efficiently and safely. Contact us for more details of Hipot Tester for dielectric withstand test from Weshine®!

Send Inquiry

Product Description

Weshine® invented the VS-9900 series of Hipot Tester fordielectric withstand test has been built to provide a cost effective, yet powerful solution todielectric withstand test, whether on a production line or in a laboratory environment for compliance testing purposes. With the ability to perform either 5kV AC or 6kV DC dielectric strength tests and up to 500VA AC power output Weshine® VS-9900 series can aid testing to many international safety standards including IEC, EN, UL and CSA to name but a few. With many features, Weshine® Hipot Tester fordielectric withstand test series ensures testing is performed accurately, efficiently and safely. Contact us for more details of Hipot Tester fordielectric withstand test from Weshine®!

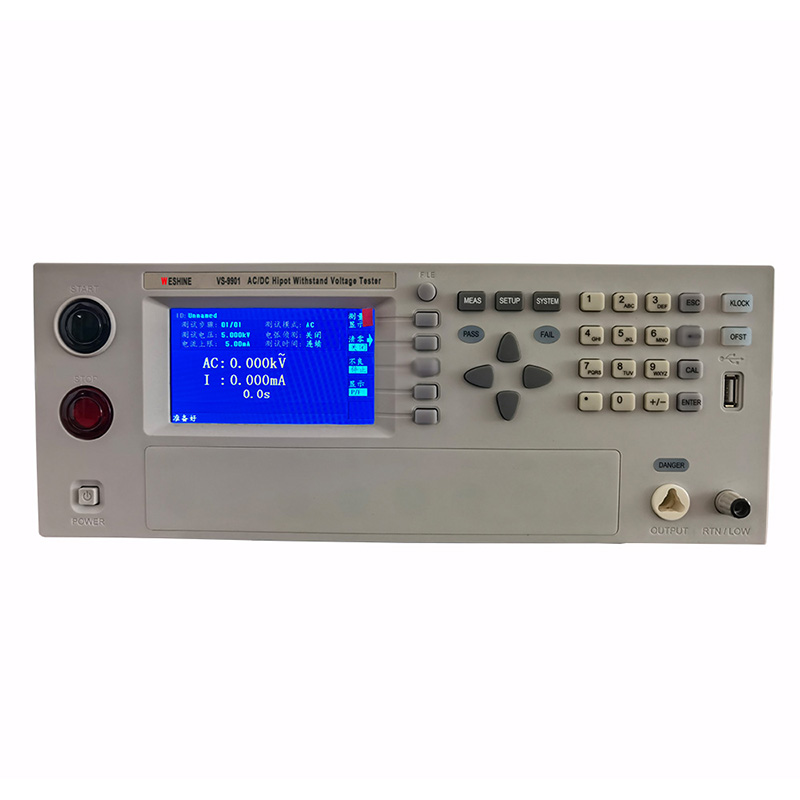

Hipot Tester fordielectric withstand test


Product Introduction:

Dielectric withstand test(hipot testing), in conjunction with earth bond testing (where applicable) form the core tests for electrical safety testing on a production line.

Thedielectric withstand test(hipot test), derived from the term High Potential Test, is a direct application of a high voltage to a unit under test. The test voltage is usually much higher than the usual operating voltage in order to stress the dielectric properties of the device under test.

Thedielectric withstand testis designed to detect that gaps or clearances between conductive parts and earth (or the product chassis) are sufficient and that degradation, such as pin holes, cracks in insulation and other protection devices have not resulted through production processes and or wear and tear, for example, a live conductor has not accidentally been crushed between the mating parts of the chassis, causing it to become live when switched on.

Breakdown in the insulation will result in current flowing across the test points of the Hipot tester fordielectric withstand test, this current flow is commonly known as leakage. If this leakage current is too high the item under test is deemed to be unsafe and the test will fail.


PRODUCT INFORMATION

Product Name

Hipot Tester for dielectric withstand test

Model Number

VS-9901

VS-9901

VS-9908

FUNCTIONS

ACV/DCV/IR

ACV/DCV/IR/SCAN

Output Channels

Single-channel

4-channel

8-channel

OUTPUT CURRENT

AC

Output

30 mA

Test Accuracy

1% ±5counts(5%士20 counts for real current)

Display Accuracy

1 μA

Frequency

50/60 Hz

DC

Output

10 mA

Test Accuracy

1% ±5counts(5%士20 counts for real current)

Display Accuracy

0.1 μA


OUTPUT VOLTAGE

AC

Output

0.05 to 5 kV

Test Accuracy

1% ±5 V

Display Accuracy

2 V

Frequency

50/60 Hz

Power

150 VA

DC

Output

0.05 to 6 kV

Test Accuracy

1% ±5 V

Display Accuracy

2 V

Power

60 VA

IR

Output

DC 0.05 to 1 kV

Test Range

1 MΩ to 50 GΩ

Test Accuracy

1.5% ±5 V

Display Accuracy

2 V


Quality Certificates

We always believe that all the success of our company is directly related to the quality of the products we provide. Hipot Tester fordielectric withstand test meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
