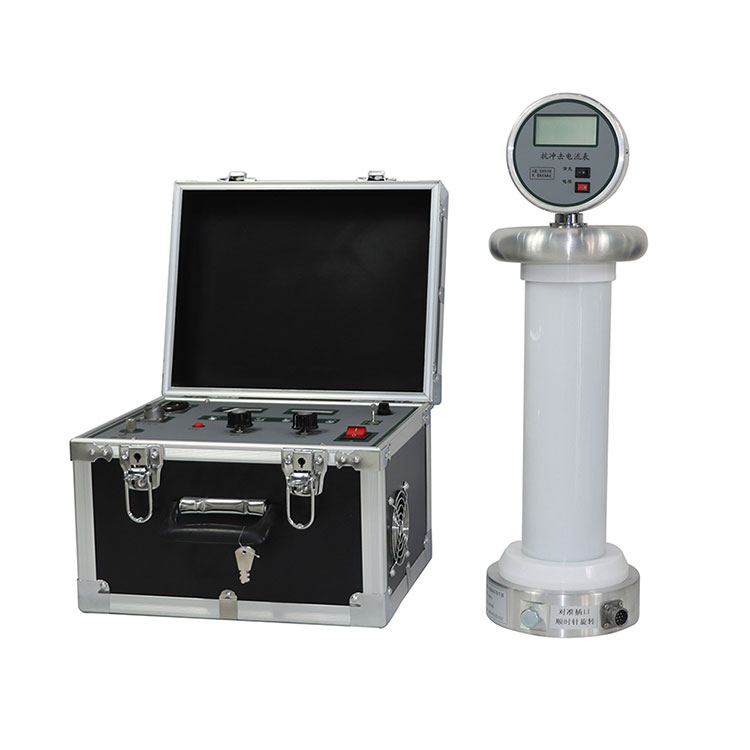

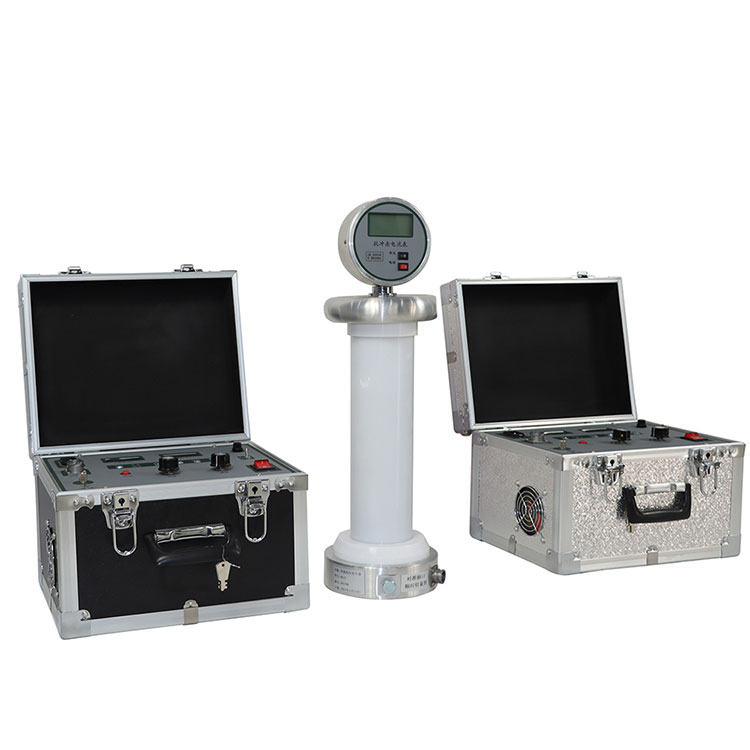

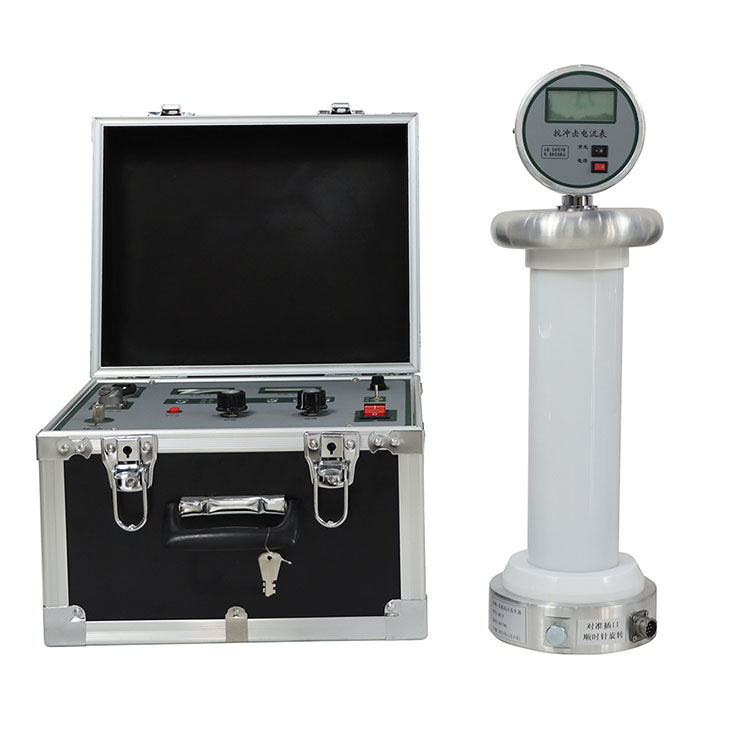

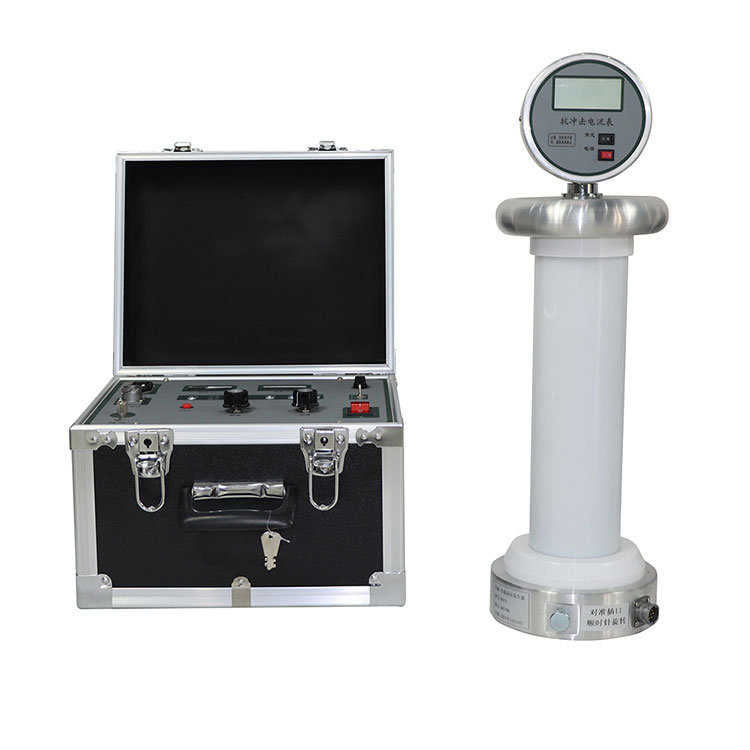

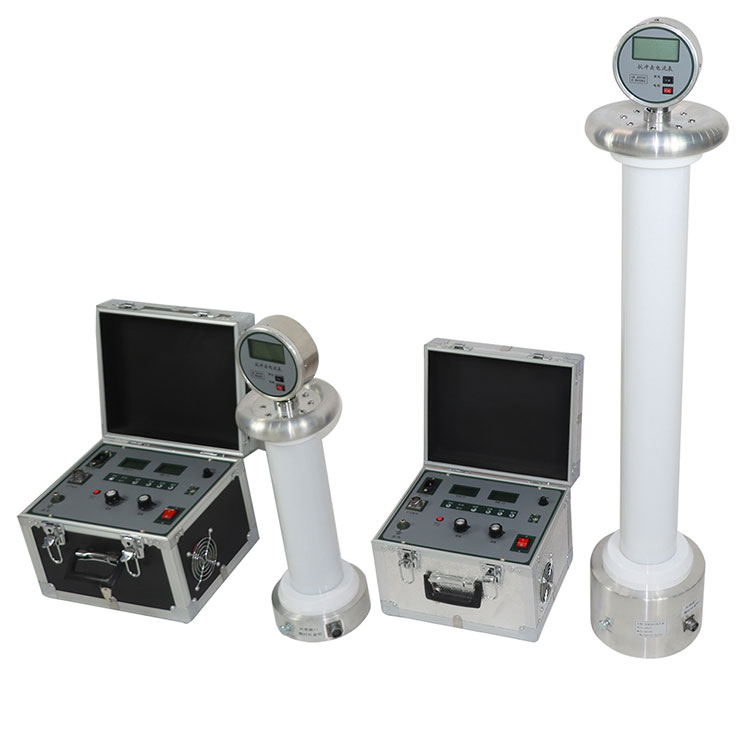

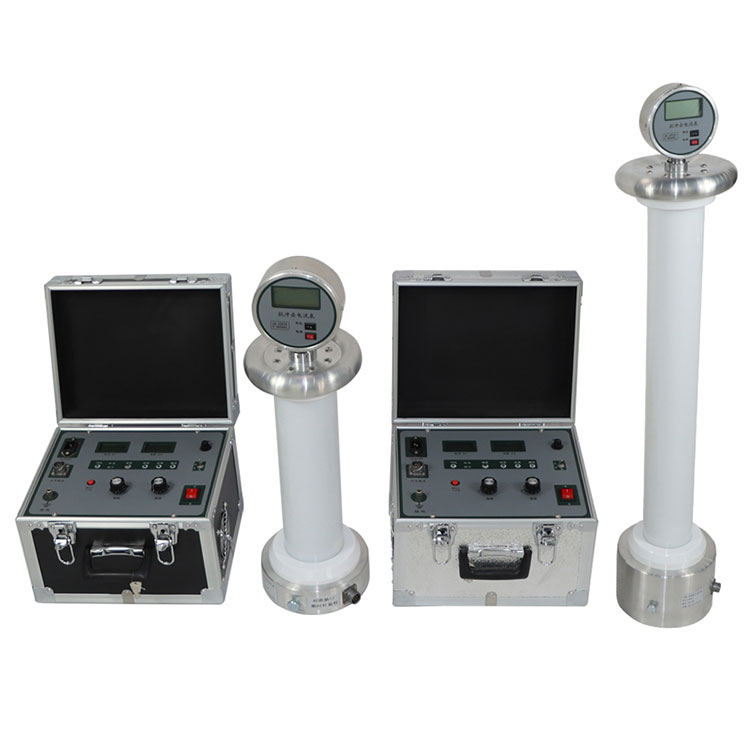

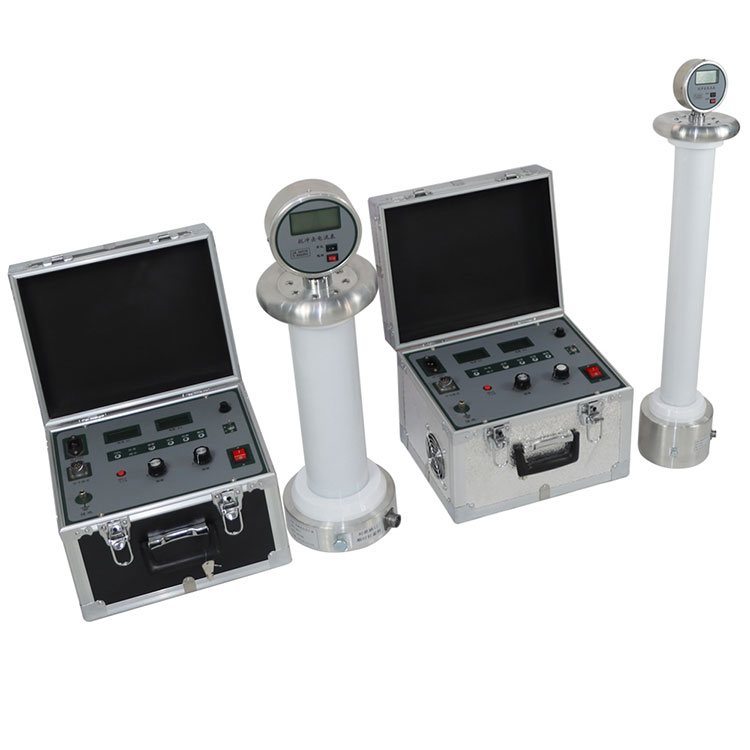

DC Hipot Test Set

The Weshine® DC Hipot Test Set is a destructive test. During the test, the equipment will be damaged to a certain extent. It is to detect the maximum voltage peak that the equipment can withstand under the high-voltage test. It is convenient to determine the use range of the equipment and select the range of the equipment.

Send Inquiry

Product Description


Parameter of Weshine® DC Hipot Test Set





Voltage (KV)

Current (mA)

Control Box

High-Voltage Unit

Rated Voltage

Size (mm)

Weight (kg)

Size (mm)

Weight(kg)

60/2-5

60KV

310 * 250 * 230

5kg

470 * 260 * 220

6kg

80/2-5

80KV

310 * 250 * 230

6kg

490*260*220

8kg

100/2-5

100KV

310 * 250 * 230

6kg

550*260*220

8kg

120/2-5

120KV

310 * 250 * 230

7kg

600 * 260 * 220

10kg

200/2-5

200KV

310 * 250 * 230

8kg

1000 * 280 * 270

20kg

300/2-5

300KV

310 * 250 * 230

9kg

1300 * 280 * 270

22kg

350/2-5

350KV

310 * 250 * 230

9kg

1350 * 280 * 270

23kg

output polarity

Negative polarity, no-voltage start, linear continuous adjustment

working power supply

50HZ AC220V±10%

voltage error

0.5% ± 2 dgt, minimum resolution 0.1KV

current error

0.5% ± 2 dgt, minimum resolution 0.1µA

ripple factor

better than 0.5%

voltage stability

Random flunctuation , grid change is 10% , the flunctuation <=0.5%

working manner

Interval working, less than 30 minutes under rated load

working condition

Temperature: 0-40℃, humidity: less than 90%

storage condition

Temperature: -10℃~40℃, humidity: less than 90%

altitude

Lower than 3000 m


Advantages of Weshine® DC Hipot Test Set


The DC high voltage generator has a small ripple coefficient, stable and reliable voltage output, no noise, and good reliability

2. With overvoltage, overcurrent, zero-voltage start-up and fault protection functions, the voltage protection value can be set, and the display is intuitive

3. The voltage and current are digitally displayed, and there is a reading when the power is turned on, which is convenient for monitoring the output status

4. With 0.75 times voltage conversion, it is convenient to test zinc oxide arresters

5. The product is compact in structure, small in size and easy to carry.
